Case

885B DHP

Motor Grader

Net Power Gears 7-8
214.0 hp
All motor graders

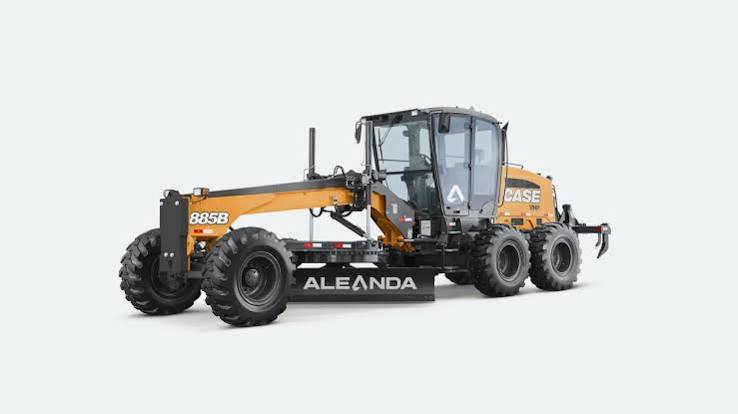

Case 885B DHP Motor Grader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total40,466 lb
Tire Size20.5-25
Fuel Capacity90.0 gal
Std Operation Weight - Front Axle12,496 lb
Std Operation Weight - Rear Axle27,970 lb
Hydraulic System Fluid Capacity47.5 gal
Tandem Case Fluid Capacity (each)15.9 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.5 gal
Alternator Supplied Amperage90 A
Transmission Fluid Capacity5.8 gal
Circle Gearbox Fluid Capacity0.8 gal
Rear Diff/Final Drive Fluid Capacity10.5 gal
Oil System Fluid Capacity4.4 gal

Engine

Engine specifications
Engine ModelFPT 6.7L
Displacement409 in³
Power Measured @2,200 rpm
Net Power219.0 hp
Number of Cylinders6
AspirationTurbocharged with Aftercooler
Stroke5 in
Bore4 in
Engine Type4-stroke turbocharged and air-to-air after cooled
Net Power Gears 7-8214.0 hp
Net Torque Gears 7-8726 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow49.0 gal/min
Pump TypeClosed center load sensing

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length336 in
Width Over Tires104 in
Height to Top of Isomount Cab132 in
Blade Base102 in
Tandem Axle Wheelbase65 in
Front Ground Clearance25 in
Rear Ground Clearance16 in
Overall Height with cab125 in

Transmission

Transmission specifications
Max Speed - Forward26.7 mph
Max Speed - Reverse19.0 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission Typepowershift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width168 in
Moldboard Thickness1 in
Side Shift Left21 in
Side Shift Right27 in
Max Depth of Cut28 in
Blade Down Pressure21,178 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Diameter69 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total15 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius288 in
Articulation Angle25 °
