Case

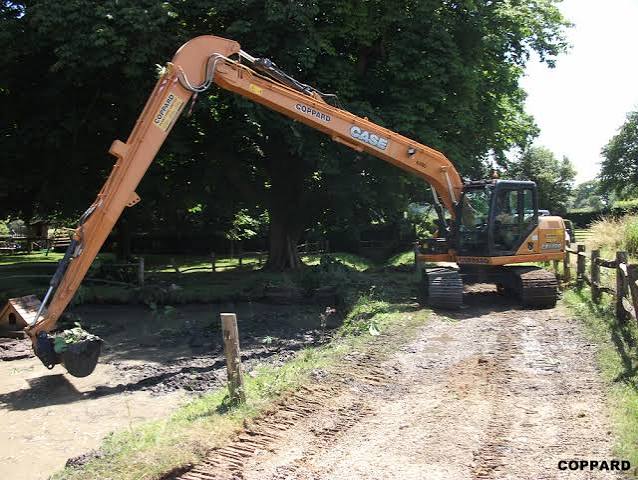

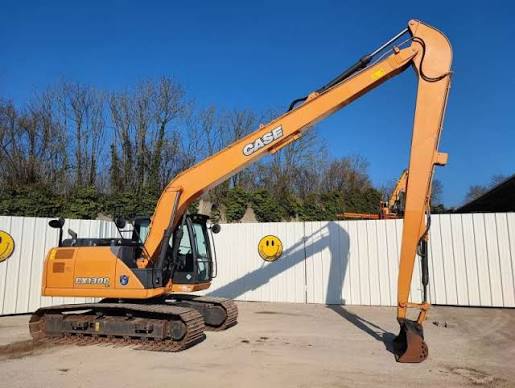

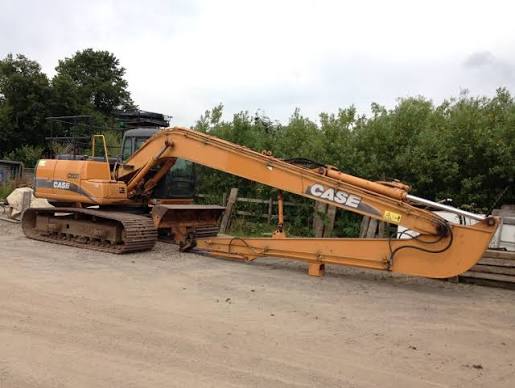

CX130 Long Reach
- Operating Weight
- 32,187 lb
- Max Digging Depth
- 240 in
- Max Digging Depth
- 400 in
- Net Power
- 106.0 hp
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 32,187 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 67.1 gal/min |
| Hydraulic System Fluid Capacity | 32.0 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 2.5 gal |
| Cooling System Fluid Capacity | 4.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 4TA-390 Tier II certified |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Net Power | 106.0 hp |
| Aspiration | turbocharged and aftercooled |
| Torque Measured @ | 1,450 rpm |
| Max Torque | 325 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 120 in |
| Tail Swing Radius | 86 in |
| Width to Outside of Tracks | 107 in |
| Removal Counterweight Clearance | 35 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 22,481 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 240 in |
|---|---|
| Max Reach Along Ground | 340 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 210 in |
| Max Cutting Height | 372 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 109 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 400 in |
|---|---|
| Max Cutting Height | 509 in |
| Max Loading Height | 433 in |
| Max Reach Along Ground | 515 in |
| Shipping Length of Unit | 409 in |
| Shipping Height of Unit | 108 in |
