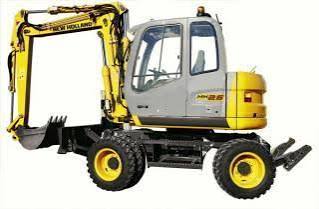

Case
New Holland
MH2.6
Excavator
45 specifications
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 36,226 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 36.5 gal/min |
| Hydraulic System Fluid Capacity | 39.1 gal |
| Hydraulic System Relief Valve Pressure | 34,577 psi |
| Engine Oil Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 4.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 4TA-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Net Power | 106.0 hp |
| Aspiration | Turbocharged and Aftercooled |
| Torque Measured @ | 1,450 rpm |
| Max Torque | 325 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 95 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 41 in |
| Digging Depth | 252 in |
| Digging Reach | 252 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.7 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 42 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 28,776 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 254 in |
|---|---|
| Max Reach Along Ground | 367 in |
| Max Loading Height | 275 in |
| Max Vertical Wall Digging Depth | 224 in |
| Max Cutting Height | 378 in |
| Shipping Length of Unit | 332 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Vertical Wall Digging Depth | 205 in |
| Max Cutting Height | 367 in |
| Max Loading Height | 264 in |
| Max Reach Along Ground | 354 in |
| Shipping Length of Unit | 331 in |
| Shipping Height of Unit | 117 in |
