Komatsu

PW95R-2

Excavator

Operating Weight
22,267 lb
Net Power
82.5 hp
All excavators

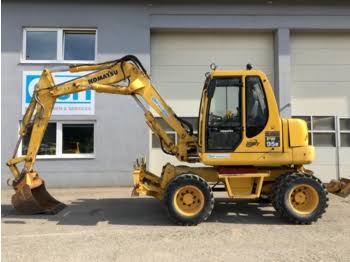

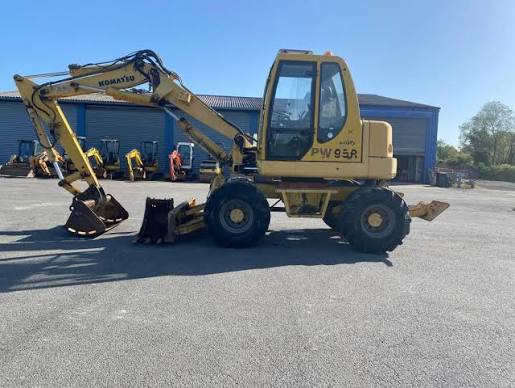

Komatsu PW95R-2 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,267 lb
Hydraulic Pump Flow Capacity47.6 gal/min
Hydraulic System Relief Valve Pressure3,989 psi
Operating Voltage12 V
Alternator Supplied Amperage80 A
Hydraulic Pump Typevariable displacement axial piston
Tire Size8.25-20

Engine

Engine specifications
Engine Model4D106-1FB
Displacement269 in³
Power Measured @2,200 rpm
Net Power82.5 hp
Number of Cylinders4
Torque Measured @1,500 rpm
Net Torque229 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab120 in
Wheelbase88 in
Overall Width8 in
Tail Swing Radius62 in
Upper Structure Clearance44 in

Transmission

Transmission specifications
Max Travel Speed19.3 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
