Case
CX210 NLC
- Operating Weight
- 44,463 lb
- Max Digging Depth
- 264 in
- Max Digging Depth
- 240 in
- Net Power
- 141.0 hp
1 / 5

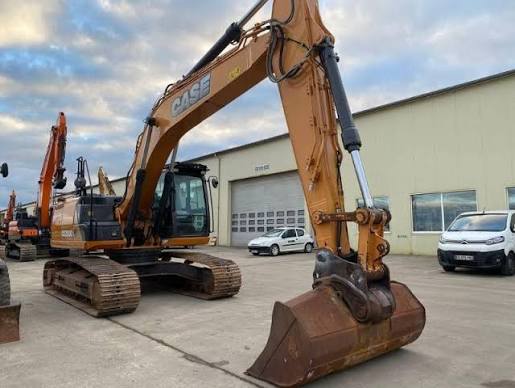

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 44,463 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| Hydraulic Pump Flow Capacity | 53.1 gal/min |
| Hydraulic System Fluid Capacity | 54.5 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.2 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | BB-6BGIT |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 141.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 402 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 111 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 41,140 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 264 in |
|---|---|
| Max Reach Along Ground | 385 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 381 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 240 in |
|---|---|
| Max Vertical Wall Digging Depth | 215 in |
| Max Cutting Height | 371 in |
| Max Loading Height | 260 in |
| Max Reach Along Ground | 364 in |
| Shipping Length of Unit | 378 in |
| Shipping Height of Unit | 121 in |
