Case
JCB
JS240L
Excavator
13 specifications
1 / 5

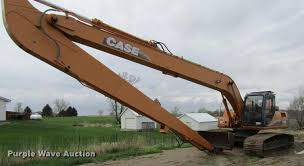

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 60,568 lb |
|---|---|
| Fuel Capacity | 90.0 gal |
| Hydraulic Pump Flow Capacity | 56.1 gal/min |
| Hydraulic System Fluid Capacity | 59.5 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6TAA-5904 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,150 rpm |
| Gross Power | 180.0 hp |
| Net Power | 173.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 461 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 119 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 43,006 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 576 in |
|---|---|
| Max Reach Along Ground | 720 in |
| Max Loading Height | 455 in |
| Max Vertical Wall Digging Depth | 480 in |
| Max Cutting Height | 540 in |
| Shipping Length of Unit | 571 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
