Case

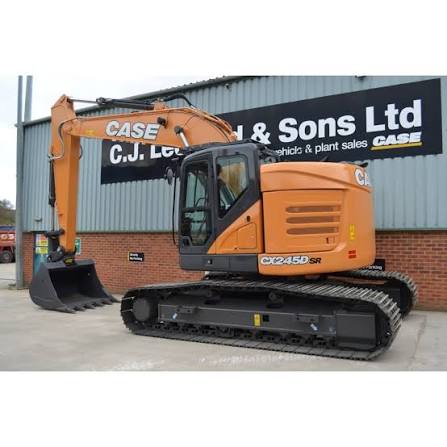

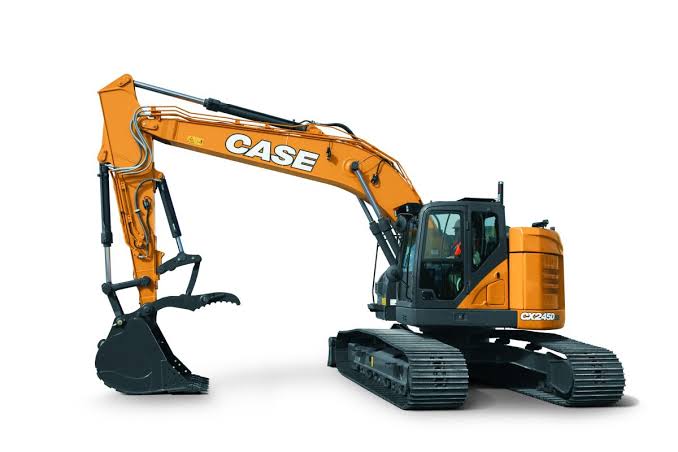

CX245D SR
- Operating Weight
- 56,879 lb
- Max Digging Depth
- 263 in
- Max Digging Depth
- 256 in
- Net Power
- 160.0 hp
1 / 5
Image 1 of 5
Specifications
67 data points
Operating Specifications
| Operating Weight | 56,879 lb |
|---|---|
| Arm Breakout Force | 25,179 lb |
| Arm size | 118 in |
Engine
| Engine Model | Isuzu 4 HKIX |
|---|---|
| Displacement | 317 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 160.0 hp |
| Max Torque | 458 lb-ft |
| Engine Make | Isuzu |
| Stroke | 5 in |
| Bore | 5 in |
| Fuel Type | Requires ultra low-sulfur fuel B5 biodiesel tolerant |
| Emission Tier Level | Tier 4 |
| Fuel injection | Direct injection - electronic |
| Air filter type | Dry type element with warning restriction indicator |
| Fuel Filter | Replaceable full flow spin-on cartridge |
| Oil Filter | Replaceable full flow spin-on cartridge |
| Horsepower per SAE J1349 Net | 160.0 hp |
Hydraulic System
| Main pump - Maximum flow | 111.5 gal |
|---|---|
| System relief pressure | 4,975 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Tail Swing Radius | 78 in |
| Rear Ground Clearance | 71 in |
| Overall length (W/bucket) | 352 in |
| Center to center - idler to sprocket | 145 in |
| Ground pressure | 6 psi |
| Boom length | 226 in |
| Overall width -Upper Structure | 119 in |
| Overall Track Length | 176 in |
| Overall Height with cab | 126 in |
Transmission
| Max Speed | 3.2 mph |
|---|
Undercarriage
| Track Shoe Width | 32 in |
|---|
Brakes & Steering
| Service brake | SAHR disc - each motor |
|---|---|
| Brakes Type | Mechanical disc |
| Travel control | Dual stage relief or counter balance design |
Fluid Capacities
| Fuel Tank | 84.6 gal |
|---|---|
| Hydraulic system | 66.6 gal |
| Cooling system | 8.5 gal |
| Hydraulic Tank | 30.2 gal |
| Engine oil w/ filter change | 6.2 gal |
| Swing drive | 1.4 gal |
| Final Drive | 1.4 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 263 in |
|---|---|
| Max Reach Along Ground | 388 in |
| Max.Dumping Height | 315 in |
| Max Digging Reach on Ground | 381 in |
| Bucket rotation | 177 ° |
| Mximum dig radius | 369 in |
| Dig radius at ground line | 362 in |
| Dump height | 300 in |
| Maximum vertical wallcut depth | 216 in |
General Specifications
| Operating Weight lbs (kg) | 56,900 (25,800) — Starting 2025 Model Year |
|---|---|
| Digging Depth ft (m) | 21.8 (6.6) — Starting 2025 Model Year |
| Digging Reach ft. (m) | 31.8 (9.7) — Starting 2025 Model Year |
| Engine hp (kW) | 160 (119.3) — Starting 2025 Model Year |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 256 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Bucket rotation | 177 ° |
| Dig radius at ground line | 381 in |
| Dump height | 314 in |
| Maximum dig radius | 388 in |
| Maximum reach height | 428 in |
Performance
| Lift over end Max. reach | 5,710 lb |
|---|---|
| Lift over side Max. reach | 5,313 lb |
| Lift over end 10' radius | 19,048 lb |
| Lift over side 10' radius | 19,048 lb |
