Case

CX25

Mini Excavator

Operating Weight
5,556 lb
Max Digging Depth
101 in
Net Power
17.7 hp
All mini excavators

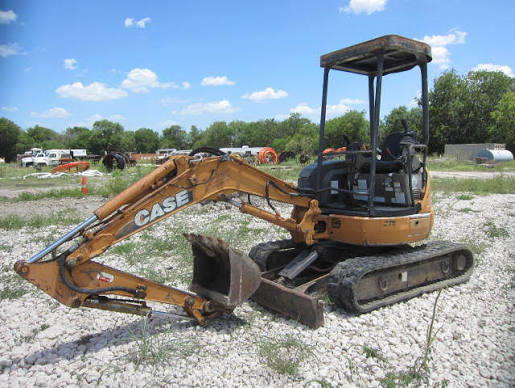

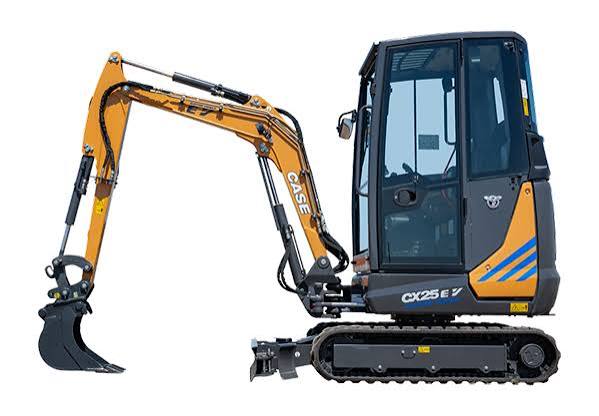

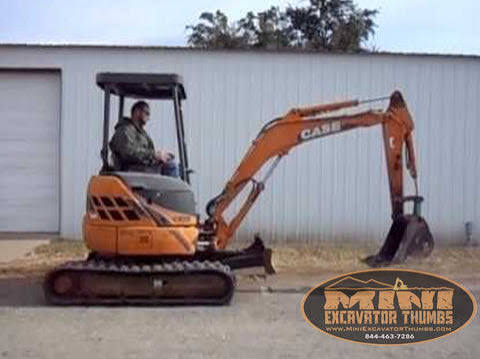

Case CX25 Mini Excavator
1 / 5
Image 1 of 5
Image: casece.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,556 lb
Fuel Capacity6.6 gal
Hydraulic Pump Flow Capacity12.7 gal/min
Hydraulic System Fluid Capacity11.1 gal
Hydraulic System Relief Valve Pressure3,277 psi
Operating Voltage12 V
Alternator Supplied Amperage20 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity0.8 gal

Engine

Engine specifications
Engine Model3TNE74
Displacement62 in³
Power Measured @2,400 rpm
Net Power17.7 hp
Number of Cylinders3
Torque Measured @1,700 rpm
Max Torque48 lb-ft

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab95 in
Length of Track on Ground60 in
Tail Swing Radius30 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance19 in
Digging Depth96 in
Digging Reach96 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side4
Max Travel Speed2.7 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth101 in
Max Reach Along Ground180 in
Max Vertical Wall Digging Depth96 in
Max Loading Height130 in
Shipping Length of Unit163 in
Max Cutting Height179 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
