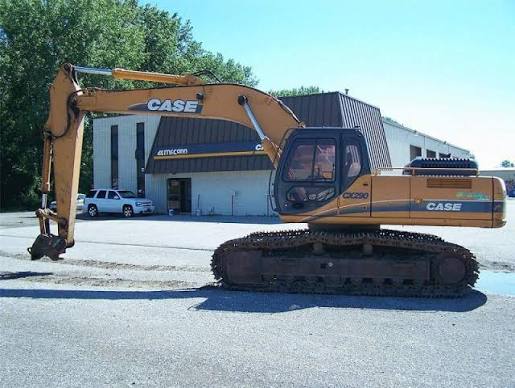

Case
CX290 NLC
- Operating Weight
- 62,589 lb
- Max Digging Depth
- 300 in
- Max Digging Depth
- 282 in
- Net Power
- 182.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 62,589 lb |
|---|---|
| Fuel Capacity | 90.0 gal |
| Hydraulic Pump Flow Capacity | 58.4 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 7.7 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6TAA-5904 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 190.0 hp |
| Net Power | 182.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 487 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 155 in |
| Tail Swing Radius | 126 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 53,954 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 300 in |
|---|---|
| Max Reach Along Ground | 433 in |
| Max Loading Height | 291 in |
| Max Vertical Wall Digging Depth | 263 in |
| Max Cutting Height | 409 in |
| Shipping Length of Unit | 411 in |
| Shipping Height of Unit | 138 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.20 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 282 in |
|---|---|
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 398 in |
| Max Loading Height | 280 in |
| Max Reach Along Ground | 415 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 130 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 261 in |
|---|---|
| Max Cutting Height | 396 in |
| Max Loading Height | 276 in |
| Max Vertical Wall Digging Depth | 223 in |
| Max Reach Along Ground | 398 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 130 in |
