Case

CX36

Mini Excavator

Operating Weight
7,738 lb
Max Digging Depth
122 in
Net Power
23.7 hp
All mini excavators

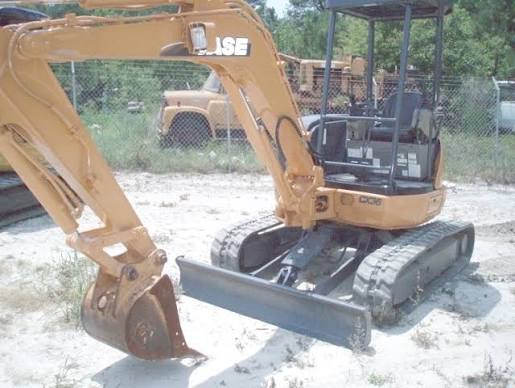

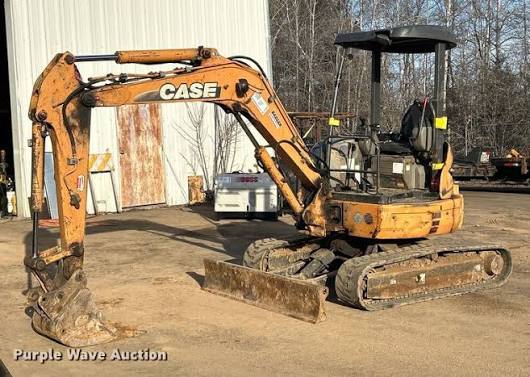

Case CX36 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,738 lb
Fuel Capacity1.0 gal
Hydraulic Pump Flow Capacity18.4 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,277 psi
Operating Voltage12 V
Alternator Supplied Amperage24 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity0.8 gal

Engine

Engine specifications
Engine Model3TNE82A
Displacement81 in³
Power Measured @2,400 rpm
Net Power23.7 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque59 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground67 in
Tail Swing Radius33 in
Width to Outside of Tracks67 in
Removal Counterweight Clearance23 in
Digging Depth120 in
Digging Reach120 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size12 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth122 in
Max Reach Along Ground200 in
Max Vertical Wall Digging Depth93 in
Max Loading Height127 in
Shipping Length of Unit186 in
Max Cutting Height179 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
