Case

CX36B

Mini Excavator

Operating Weight
7,958 lb
Max Digging Depth
121 in
Net Power
28.4 hp
All mini excavators

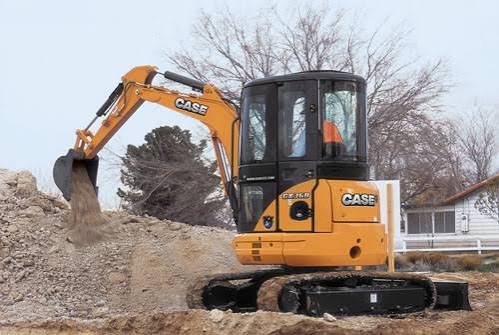

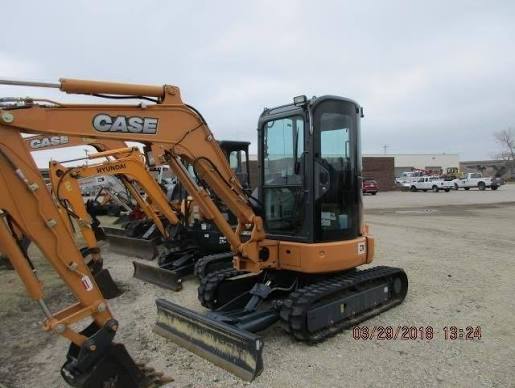

Case CX36B Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,958 lb
Fuel Capacity10.0 gal
Hydraulic Pump Flow Capacity20.2 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage24 A
Engine Oil Capacity1.8 gal
Cooling System Fluid Capacity1.2 gal

Engine

Engine specifications
Engine ModelYanmar 3TNV88-BPYB
Displacement100 in³
Power Measured @2,400 rpm
Net Power28.4 hp
Number of Cylinders3
Torque Measured @1,440 rpm
Max Torque73 lb-ft
Emissions levelTier 4

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab102 in
Length of Track on Ground67 in
Tail Swing Radius33 in
Width to Outside of Tracks67 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size12 in
Number of Carrier Rollers per Side1
Drawbar Pull8,655 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth121 in
Max Reach Along Ground200 in
Max Vertical Wall Digging Depth95 in
Max Loading Height141 in
Shipping Length of Unit102 in
Max Cutting Height196 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.10 yd³

Boom

Boom specifications
Arm Length50 in
Boom Length98 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Lift System

Lift System specifications
Bucket Breakout Force6,227 lb
Lift over end Max. reach - lbs1,962 lb
Lift over side Max. reach904 lb
