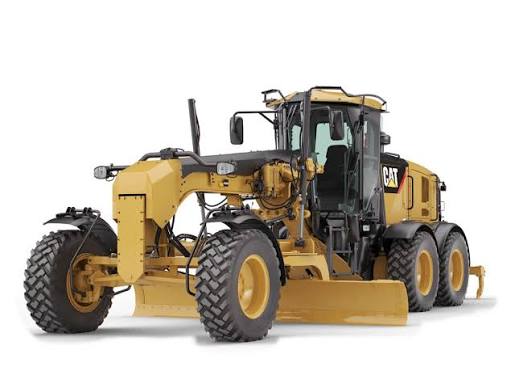

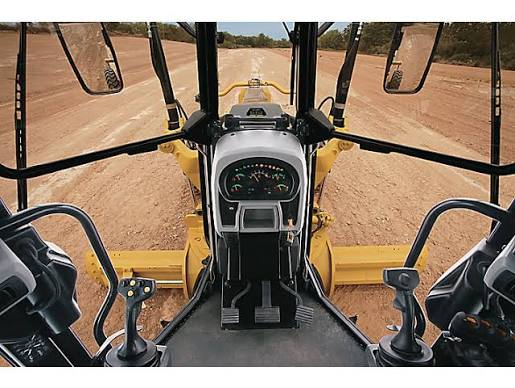

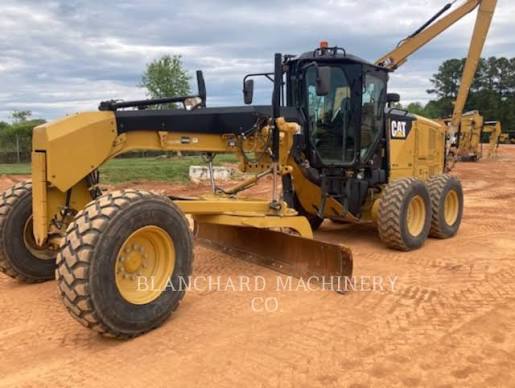

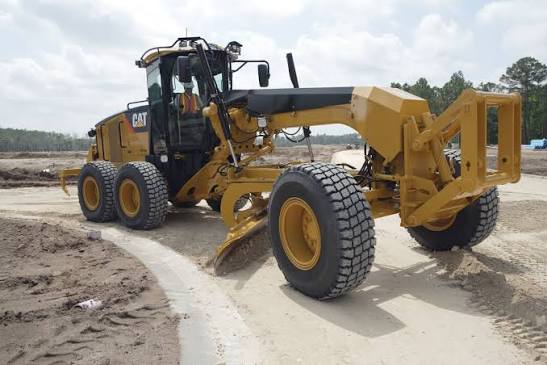

120M

Specifications

200 data points

Operating Specifications specifications
Operating Weight	31,069 lb
Max Operation Weight - Total	44,690 lb
Max Operation Weight - Front Axle	16,312 lb
Max Operation Weight - Rear Axle	28,378 lb
Std Operation Weight - Total	31,069 lb
Fuel Capacity	90.0 gal
Std Operation Weight - Front Axle	8,233 lb
Std Operation Weight - Rear Axle	22,836 lb
Hydraulic System Fluid Capacity	15.9 gal
Tandem Case Fluid Capacity (each)	16.9 gal
Cooling System Fluid Capacity	10.4 gal
Circle Gearbox Fluid Capacity	1.8 gal
Rear Diff/Final Drive Fluid Capacity	13.2 gal
Articulation Angle - Left/Right	20 °
Forward - 1st	2.4 mph
Forward - 2nd	3.3 mph
Forward - 3rd	4.8 mph
Forward - 4th	6.5 mph
Forward - 5th	10.2 mph
Forward - 6th	13.8 mph
Reverse - 1st	2
Reverse - 2nd	3.8 mph
Reverse - 3rd	5.6 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	27.7 mph
Top Speed - Reverse	23.5 mph
Turning Radius - Outside Front Tires	294 in
Forward - 7th	19.0 mph
Forward - 8th	27.7 mph
Reverse - 4th	8.6 mph
Reverse - 5th	16.1 mph
Reverse - 6th	23.5 mph

Engine specifications
Engine Model	Cat C6.6 ACERT
Displacement	403 in³
Power Measured @	2,000 rpm
Number of Cylinders	6
Stroke	5 in
Bore	4 in
Max Power	138.0 hp
Net Power Gears 7-8	138.0 hp
Emissions	U.S. EPA Tier 3/EU Stage IIIA equivalent
Base Power (1st Gear) - Net	138.0 hp
Derating Altitude	138,000 in
Maximum Torque	690 lb-ft
High - Ambient Capability	122 °
Standard - Ambient Capability	109 °
Base Power (All Gears) - Net	138.0 hp
V Plus Range - Net	138.1 – 182.4 hp
Base Power (1st Gear) - Net - Metric	140.0 hp
V Plus Range - Net - Metric	138.1 – 182.4 hp
High Ambient - Fan Speed - Minimum	600 rpm
Speed at Rated Power	2,000 rpm
High Ambient - Fan Speed - Maximum	1,650 rpm
V Range - Net	138.1 – 152.9 hp
Torque Rise - V Plus	40.0 %
Standard - Fan Speed - Minimum	600 rpm
Standard - Fan Speed - Maximum	1,150 rpm

Weights specifications
Operating Weight - Typically Equipped	40,565 lb
Gross Vehicle Weight - Maximum - Front Axle	15,077 lb
Gross Vehicle Weight - Maximum - Rear Axle	33,523 lb
Gross Vehicle Weight - Maximum - Total	48,601 lb
Gross Vehicle Weight - Base - Front Axle	9,303 lb
Gross Vehicle Weight - Base - Rear Axle	26,479 lb
Gross Vehicle Weight - Base - Total	35,783 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	11,221 lb
Gross Vehicle Weight - Typically Equipped - Total	40,565 lb

Hydraulic System specifications
Pump Flow	40.0 gal/min
Pump Type	Variable piston
Relief Valve Pressure	3,500 psi
Maximum system pressure	3,500 psi
Circuit Type	Electro-hydraulic load sensing closed center
Pump Output	40.0 gal/min
Standby Pressure	450 psi

Dimensions specifications
Height - Top of Cab	130 in
Wheelbase	233 in
Overall Length	335 in
Width Over Tires	98 in
Height to Top of Isomount Cab	130 in
Blade Base	100 in
Tandem Axle Wheelbase	60 in
Front Ground Clearance	23 in
Rear Ground Clearance	15 in
Width - Outside Rear Tires	98 in
Height - Front Axle Center	23 in
Length - Between Tandem Axles	60 in
Length - Front Axle to Moldboard	99 in
Width - Outside Front Tires	98 in
Length - Front Tire to Rear of Machine	334 in
Height - Top of Cylinders	114 in
Width - Tire Center Lines	84 in
Length - Front Axle to Mid Tandem	233 in
Ground Clearance - Rear Axle	14 in
Height - Exhaust Stack	112 in
Length - Counterweight to Ripper	389 in

Transmission specifications
Max Speed - Forward	27.7 mph
Max Speed - Reverse	23.5 mph
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift countershaft

Moldboard specifications
Moldboard Height	24 in
Moldboard Width	144 in
Moldboard Thickness	1 in
Side Shift Left	20 in
Side Shift Right	26 in
Max Depth of Cut	28 in
Blade Pull at Max Weight	40,221 lb
Blade Down Pressure	28,887 lb
Moldboard Length	144 in
Arc Radius	16 in
Blade Width	144 in
Cutting Edge Thickness	1 in
Cutting Edge Width	6 in
End Bit - Thickness	1 in
End Bit - Width	6 in
Throat Clearance	5 in
Blade Pull - Maximum GVW	24,218 lb
Blade Down Pressure - Base GVW	16,435 lb
Blade Down Pressure - Maximum GVW	29,125 lb
Blade Pull - Base GVW	20,350 lb

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	69 in
Maximum Shoulder Reach Outside of Tires - Right	75 in
Moldboard Sideshift - Left	20 in
Moldboard Sideshift - Right	26 in
Maximum Lift Above Ground	17 in
Blade Tip Range - Backward	5 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	26 in
Circle Centershift - Right	26 in
Maximum Blade Position Angle	90 °
Maximum Depth of Cut	28 in

Circle specifications
Max Lift Above Ground	17 in
Max Reach Outside Tires - Left	69 in
Max Reach Outside Tires - Right	75 in
Diameter	60 in
Blade Tip Angle - Front	40 °
Blade Tip Angle - Rear	5 °
Shift Left	26 in
Shift Right	26 in

Steering System specifications
Turning Radius	294 in
Articulation Angle	20 °

Power Train specifications
Brakes - Parking	Multiple oil disc
Brakes - Secondary	Dual circuit control system
Brakes - Service	Multiple oil-disc
Brakes - Service - Surface Area	3,565 in³
Forward/Reverse Gears	8 Fwd / 6 Rev
Transmission	Direct drive power shift countershaft

Service Refill specifications
Cooling System	8.7 gal
Circle Drive Housing	1.8 gal
Engine Oil	3.7 gal
Front Wheel Spindle Bearing Housing	0.1 gal
Fuel Capacity	90.0 gal
Hydraulic System - Tank	16.9 gal
Tandem Housing - Each	15.6 gal
Transmission - Differential - Final Drives	16.5 gal

Ripper specifications
Penetration Force	17,705 lb
Pry-Out Force	26,303 lb
Ripper Shank Holders	5
Ripping Depth - Maximum	17 in
Machine Length Increase, Beam Raised	39 in
Ripper Shank Holder Spacing	21 in

Frame specifications
Front Frame Structure - Height	11 in
Front Frame Structure - Width	11 in
Circle - Blade Beam Thickness	1 in
Circle - Diameter	60 in
Drawbar - Height	6 in
Front Axle - Height to Center	23 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	18 °
Drawbar - Width	3 in
Drawbar - Thickness	0 in

Tandems specifications
Drive Chain Pitch	2 in
Height	20 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	25 °
Tandem Oscillation - Front Up	15 °
Wheel Axle Spacing	60 in
Width	7 in

Scarifier specifications
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	5 in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18 in
Front, V-Type, 5 or 11 Tooth - Working Width	47 in
Mid, V-Type - Scarifier Shank Holder Spacing	5 in
Mid, V-Type - Scarifier Shank Holders	11
Mid, V-Type - Scarifying Depth, Maximum	12 in
Mid, V-Type - Working Width	47 in
Rear - Scarifier Shank Holder Spacing	11 in
Rear - Scarifier Shank Holders	9
Rear - Scarifying Depth, Maximum	11 in
Rear - Working Width	91 in
Mid, Straight - Scarifier Shank Holder Spacing	4 in
Mid, Straight - Scarifier Shank Holders	17
Mid, Straight - Scarifying Depth, Maximum	13 in
Mid, Straight - Working Width	71 in
