Caterpillar

135H

Motor Grader

Max Power
155.0 hp
Net Power Gears 7-8
155.0 hp
Net Power Gear 5-6
155.0 hp
All motor graders

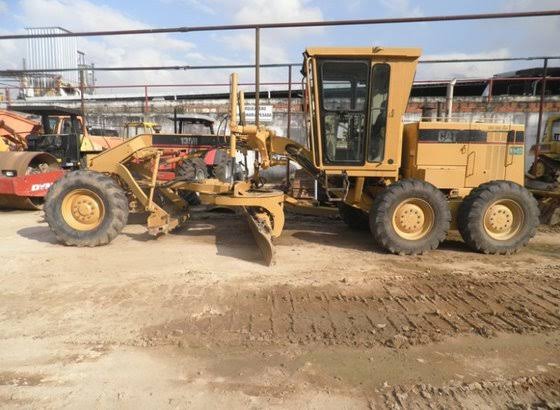

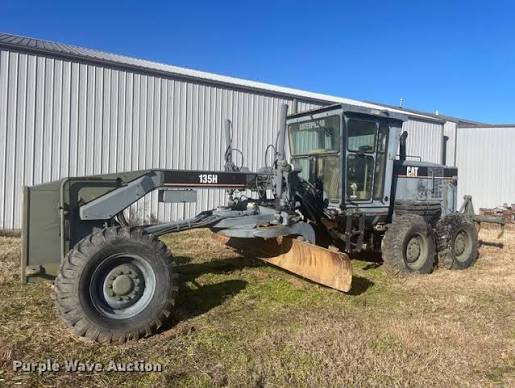

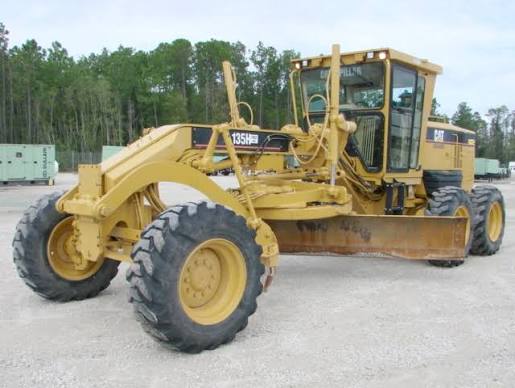

Caterpillar 135H Motor Grader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Tire Size13-24 10 PR (G-2)
Std Operation Weight - Front Axle8,242 lb
Std Operation Weight - Rear Axle20,598 lb
Tandem Case Fluid Capacity (each)12.7 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.4 gal
Alternator Supplied Amperage35 A
Circle Gearbox Fluid Capacity1.8 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders6
Torque Measured @1,000 rpm
Max Power155.0 hp
Net Power Gears 7-8155.0 hp
Net Torque Gears 7-8625 lb-ft
Net Power Gear 5-6155.0 hp
Net Power Gear 1-2135.0 hp
Net Power Gear 4-6155.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow38.1 gal/min
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Blade Base103 in
Tandem Axle Wheelbase60 in
Front Ground Clearance15 in
Rear Ground Clearance15 in

Transmission

Transmission specifications
Max Speed - Forward26.1 mph
Max Speed - Reverse20.6 mph
Number of Gears - Forward8
Number of Gears - Reverse6
Transmission Typedirect drive powershift

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left21 in
Side Shift Right26 in
Max Depth of Cut31 in
Blade Pull at Max Weight25,364 lb
Blade Down Pressure21,654 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left73 in
Max Reach Outside Tires - Right75 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear5 °
Shift Left25 in
Shift Right25 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °
Ground Clearance24 in

Steering System

Steering System specifications
Articulation Angle20 °
