Caterpillar

140B

Motor Grader

Max Power
150.2 hp
Net Power Gear 5-6
150.2 hp
All motor graders

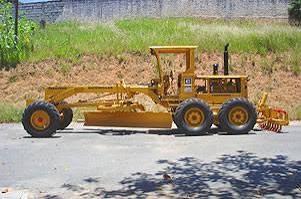

Caterpillar 140B Motor Grader
1 / 5
Image 1 of 5
Image: cat.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total30,027 lb
Tire Size14.0-24 (10PR) (G-2)
Fuel Capacity60.0 gal

Engine

Engine specifications
Displacement641 in³
Max Power150.2 hp
Net Power Gear 5-6150.2 hp

Dimensions

Dimensions specifications
Wheelbase243 in
Overall Length318 in
Width Over Tires95 in
Height to Top of Isomount Cab127 in
Blade Base109 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse16.0 mph
Number of Gears - Forward6
Number of Gears - Reverse4

Moldboard

Moldboard specifications
Moldboard Height28 in
Moldboard Width156 in

Circle

Circle specifications
Max Lift Above Ground14 in
Max Reach Outside Tires - Left95 in
Max Reach Outside Tires - Right95 in

Steering System

Steering System specifications
Turning Radius457 in
