Caterpillar

140H

Motor Grader

Max Operation Weight - Total
46,872 lb
Max Power
185.0 hp
Net Power Gears 7-8
185.0 hp
Net Power Gear 5-6
185.0 hp
All motor graders

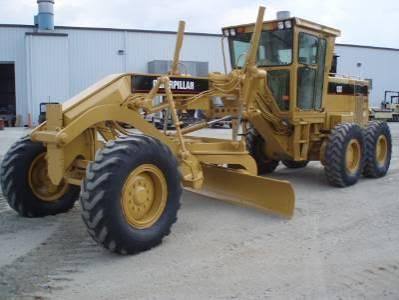

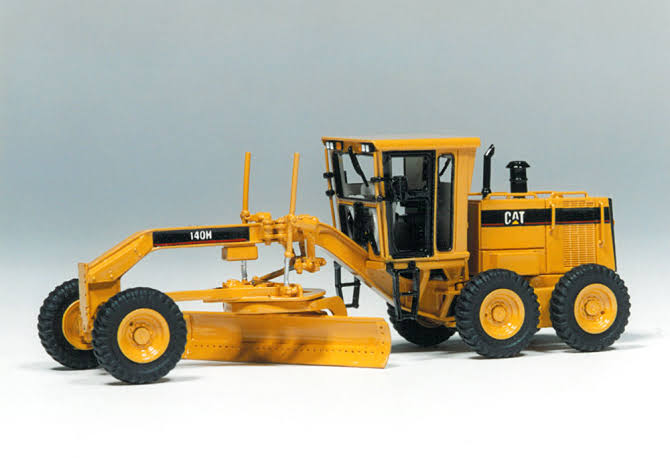

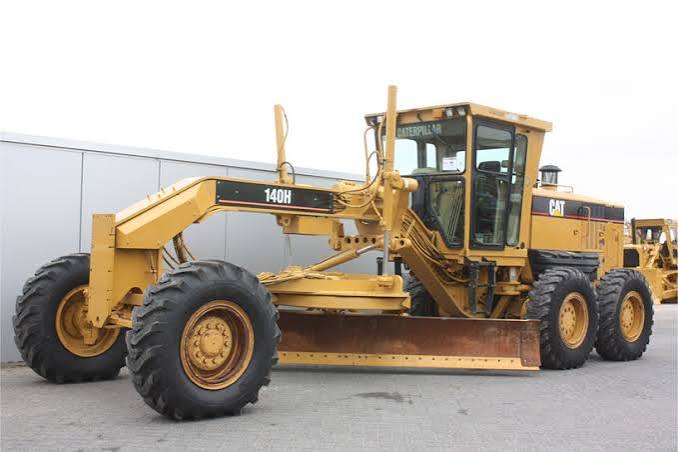

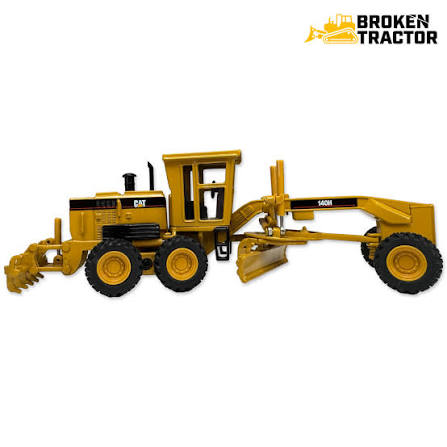

Caterpillar 140H Motor Grader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total46,872 lb
Max Operation Weight - Front Axle16,733 lb
Max Operation Weight - Rear Axle30,139 lb
Tire Size14-24 10PR (G-2)
Std Operation Weight - Front Axle9,123 lb
Std Operation Weight - Rear Axle23,234 lb
Tandem Case Fluid Capacity (each)16.9 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.0 gal
Alternator Supplied Amperage50 A
Circle Gearbox Fluid Capacity1.8 gal
Rear Diff/Final Drive Fluid Capacity12.4 gal

Engine

Engine specifications
Power Measured @2,000 rpm
Number of Cylinders6
Max Power185.0 hp
Net Power Gears 7-8185.0 hp
Net Power Gear 5-6185.0 hp
Net Power Gear 1-2165.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typeaxial piston
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Width Over Tires97 in
Height to Top of Isomount Cab124 in
Tandem Axle Wheelbase60 in
Front Ground Clearance24 in
Rear Ground Clearance15 in

Transmission

Transmission specifications
Number of Gears - Forward8
Number of Gears - Reverse6
Transmission Typedirect drive power shift

Moldboard

Moldboard specifications
Moldboard Thickness1 in
Side Shift Left21 in
Side Shift Right26 in
Max Depth of Cut28 in
Blade Pull at Max Weight42,184 lb
Blade Down Pressure28,698 lb

Circle

Circle specifications
Max Lift Above Ground19 in
Max Reach Outside Tires - Left75 in
Max Reach Outside Tires - Right78 in
Diameter60 in
Blade Tip Angle - Front40 °
Blade Tip Angle - Rear5 °
Shift Left27 in
Shift Right29 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total32 °
Ground Clearance24 in

Steering System

Steering System specifications
Articulation Angle20 °
