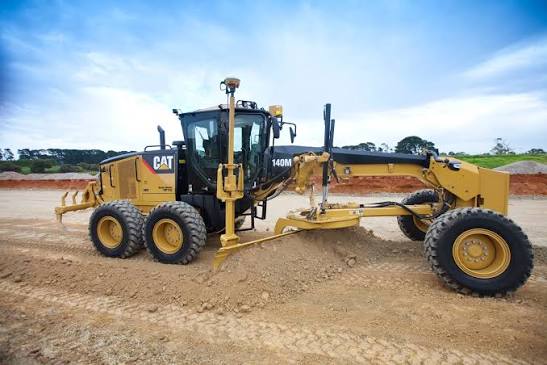

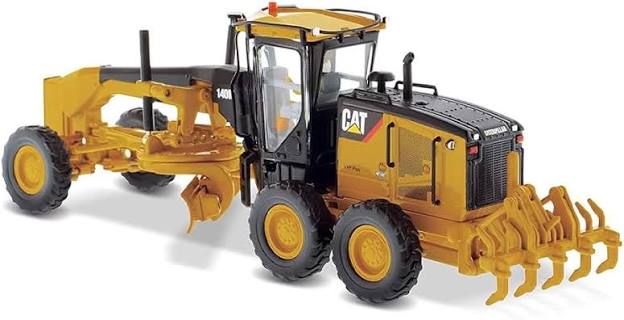

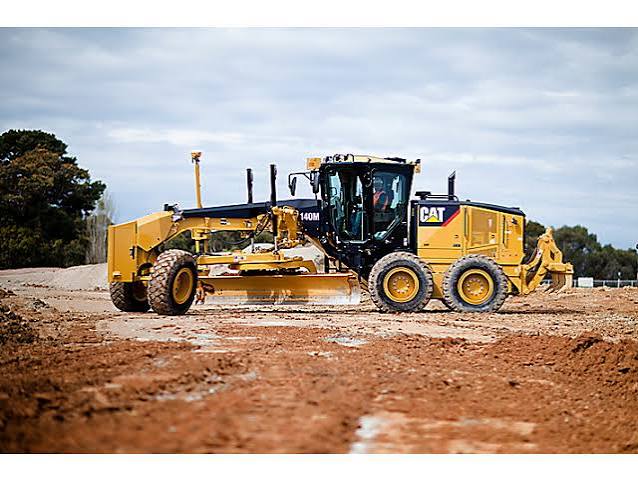

140M

Specifications

188 data points

Operating Specifications specifications
Operating Weight	33,356 lb
Max Operation Weight - Total	50,875 lb
Max Operation Weight - Front Axle	17,908 lb
Max Operation Weight - Rear Axle	32,967 lb
Std Operation Weight - Total	33,356 lb
Fuel Capacity	110.0 gal
Std Operation Weight - Front Axle	9,173 lb
Std Operation Weight - Rear Axle	24,183 lb
Hydraulic System Fluid Capacity	15.9 gal
Tandem Case Fluid Capacity (each)	16.9 gal
Cooling System Fluid Capacity	12.4 gal
Circle Gearbox Fluid Capacity	1.8 gal
Rear Diff/Final Drive Fluid Capacity	17.2 gal
Articulation Angle - Left/Right	20 °
Forward - 1st	2.5 mph
Forward - 2nd	3.4 mph
Forward - 3rd	5.0 mph
Forward - 4th	6.8 mph
Forward - 5th	10.6 mph
Forward - 6th	14.5 mph
Reverse - 1st	2
Reverse - 2nd	3.7 mph
Reverse - 3rd	5.4 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	29.0 mph
Top Speed - Reverse	22.9 mph
Turning Radius - Outside Front Tires	300 in
Forward - 7th	19.9 mph
Forward - 8th	29.0 mph
Reverse - 4th	8.4 mph
Reverse - 5th	15.7 mph
Reverse - 6th	22.9 mph

Engine specifications
Engine Model	Cat C7 ACERT
Displacement	439 in³
Power Measured @	2,000 rpm
Number of Cylinders	6
Bore	4 in
Stroke	5 in
Max Power	183.0 hp
Net Power Gears 7-8	183.0 hp
Emissions	Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Base Power (1st Gear) - Net	183.0 hp
Derating Altitude	120,000 in
High - Ambient Capability	122 °
V Plus Range - Net	182.4 – 233.3 hp
Standard - Ambient Capability	109 °
Base Power (1st Gear) - Net - Metric	186.0 hp
V Plus Range - Net - Metric	182.4 – 233.3 hp
High Ambient - Fan Speed - Maximum	1,650 rpm
Speed at Rated Power	2,000 rpm
High Ambient - Fan Speed - Minimum	600 rpm
Torque Rise - V Plus	39.0 %
Standard - Fan Speed - Maximum	1,450 rpm
Standard - Fan Speed - Minimum	600 rpm

Weights specifications
Operating Weight - Typically Equipped	41,868 lb
Gross Vehicle Weight - Maximum - Front Axle	16,606 lb
Gross Vehicle Weight - Maximum - Rear Axle	35,287 lb
Gross Vehicle Weight - Maximum - Total	51,893 lb
Gross Vehicle Weight - Base - Front Axle	9,561 lb
Gross Vehicle Weight - Base - Rear Axle	26,993 lb
Gross Vehicle Weight - Base - Total	36,554 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	11,716 lb
Gross Vehicle Weight - Typically Equipped - Total	41,868 lb
Gross Vehicle Weight - Typically Equipped	41,868 lb

Hydraulic System specifications
Pump Flow	55.7 gal/min
Pump Type	Variable piston
Relief Valve Pressure	3,500 psi
Maximum system pressure	3,500 psi
Circuit Type	Electro-hydraulic load sensing closed center
Pump Output	55.7 gal/min
Standby Pressure	450 psi

Dimensions specifications
Height - Top of Cab	1,560 in
Wheelbase	241 in
Overall Length	343 in
Width Over Tires	98 in
Height to Top of Isomount Cab	130 in
Blade Base	101 in
Tandem Axle Wheelbase	60 in
Front Ground Clearance	23 in
Rear Ground Clearance	15 in
Width - Outside Rear Tires	98 in
Height - Top of Cylinders	119 in
Length - Between Tandem Axles	60 in
Width - Tire Center Lines	84 in
Length - Front Tire to Rear of Machine	344 in
Ground Clearance - Rear Axle	13 in
Width - Outside Front Tires	98 in
Length - Front Axle to Moldboard	100 in
Height - Front Axle Center	24 in
Length - Front Axle to Mid Tandem	241 in
Height - Exhaust Stack	121 in

Transmission specifications
Max Speed - Forward	29.0 mph
Max Speed - Reverse	22.9 mph
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift countershaft

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	71 in
Maximum Shoulder Reach Outside of Tires - Right	78 in
Moldboard Sideshift - Left	20 in
Moldboard Sideshift - Right	26 in
Maximum Lift Above Ground	19 in
Blade Tip Range - Backward	5 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	27 in
Circle Centershift - Right	29 in
Maximum Blade Position Angle	90 °
Maximum Depth of Cut	28 in

Circle specifications
Max Reach Outside Tires - Left	71 in
Max Reach Outside Tires - Right	78 in
Diameter	60 in
Blade Tip Angle - Front	40 °
Blade Tip Angle - Rear	5 °
Shift Left	27 in
Shift Right	29 in

Steering System specifications
Turning Radius	306 in
Articulation Angle	20 °

Power Train specifications
Brakes - Parking	Multiple oil disc
Brakes - Secondary	Dual circuit control system
Brakes - Service	Multiple oil disc
Brakes - Service - Surface Area	3,565 in³
Forward/Reverse Gears	8 Forward/6 Reverse
Transmission	Direct drive power shift countershaft

Service Refill specifications
Cooling System	10.6 gal
Circle Drive Housing	1.8 gal
Engine Oil	6.6 gal
Front Wheel Spindle Bearing Housing	0.2 gal
Fuel Capacity	110.0 gal
Hydraulic System - Tank	16.9 gal
Tandem Housing - Each	16.9 gal
Transmission - Differential - Final Drives	16.9 gal

Ripper specifications
Penetration Force	20,540 lb
Pry-Out Force	26,259 lb
Ripper Shank Holders	5
Ripping Depth - Maximum	17 in
Machine Length Increase, Beam Raised	36 in
Ripper Shank Holder Spacing	21 in

Frame specifications
Front Frame Structure - Height	144 in
Front Frame Structure - Width	144 in
Circle - Blade Beam Thickness	2 in
Circle - Diameter	60 in
Drawbar - Height	6 in
Front Axle - Height to Center	23 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	18 °
Drawbar - Width	3 in

Tandems specifications
Drive Chain Pitch	2 in
Height	20 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	25 °
Tandem Oscillation - Front Up	15 °
Wheel Axle Spacing	60 in
Width	8 in

Scarifier specifications
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	5 in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18 in
Front, V-Type, 5 or 11 Tooth - Working Width	47 in
Mid, V-Type - Scarifier Shank Holder Spacing	5 in
Mid, V-Type - Scarifier Shank Holders	11
Mid, V-Type - Scarifying Depth, Maximum	12 in
Mid, V-Type - Working Width	47 in
Rear - Scarifier Shank Holder Spacing	11 in
Rear - Scarifier Shank Holders	9
Rear - Scarifying Depth, Maximum	11 in
Rear - Working Width	91 in
