Caterpillar

14G

Motor Grader

Max Power
180.0 hp
Net Power Gear 5-6
180.0 hp
All motor graders

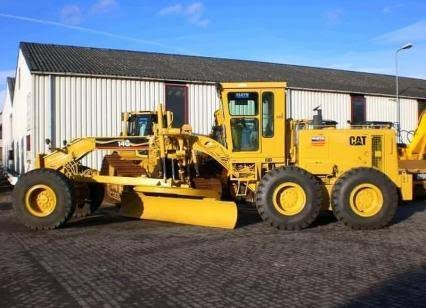

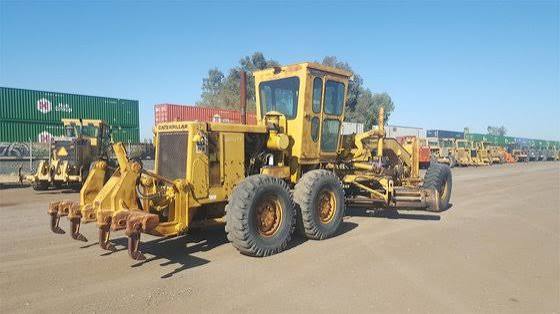

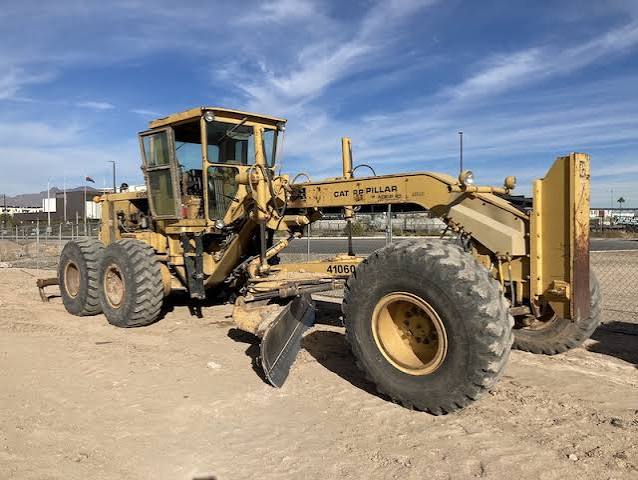

Caterpillar 14G Motor Grader
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total40,653 lb
Tire Size16x24 10 PR

Engine

Engine specifications
Displacement641 in³
Max Power180.0 hp
Net Power Gear 5-6180.0 hp

Dimensions

Dimensions specifications
Wheelbase254 in
Overall Length364 in
Width Over Tires113 in
Height to Top of Isomount Cab142 in
Blade Base114 in

Transmission

Transmission specifications
Max Speed - Forward27.1 mph
Max Speed - Reverse31.5 mph
Number of Gears - Forward8
Number of Gears - Reverse8

Steering System

Steering System specifications
Turning Radius312 in
