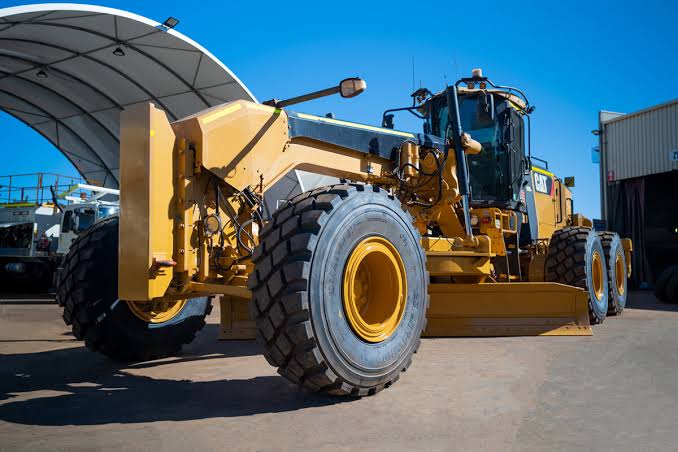

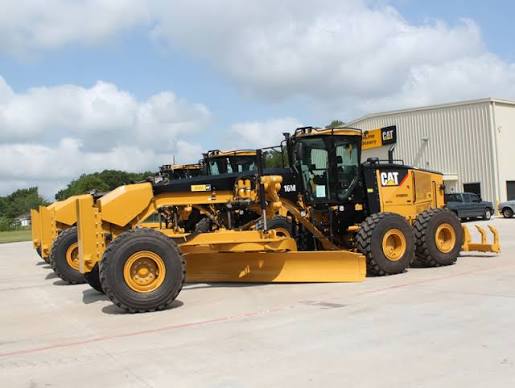

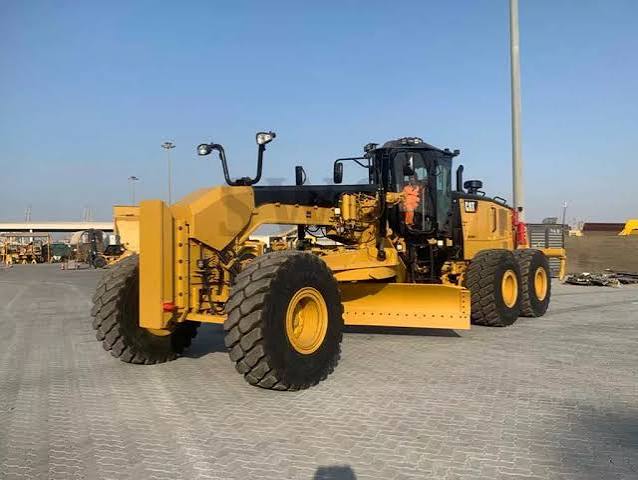

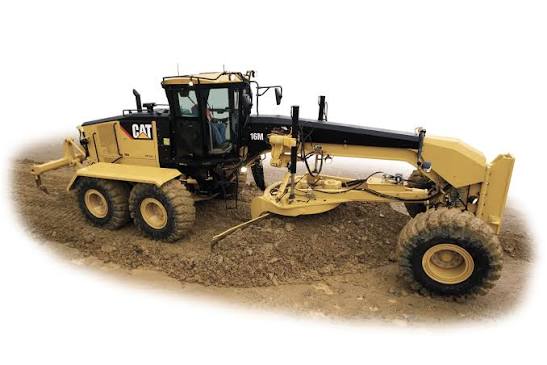

16M

Specifications

170 data points

Operating Specifications specifications
Operating Weight	57,452 lb
Max Operation Weight - Total	78,643 lb
Max Operation Weight - Front Axle	24,073 lb
Max Operation Weight - Rear Axle	54,570 lb
Std Operation Weight - Total	57,452 lb
Tire Size	18.00-25 12PR (G-2)
Fuel Capacity	135.0 gal
Std Operation Weight - Front Axle	15,679 lb
Std Operation Weight - Rear Axle	41,773 lb
Hydraulic System Fluid Capacity	30.1 gal
Tandem Case Fluid Capacity (each)	32.1 gal
Cooling System Fluid Capacity	12.3 gal
Circle Gearbox Fluid Capacity	2.1 gal
Rear Diff/Final Drive Fluid Capacity	30.1 gal
Articulation Angle - Left/Right	20 °
Forward - 1st	2.8 mph
Forward - 2nd	3.9 mph
Forward - 3rd	5.6 mph
Forward - 4th	7.7 mph
Forward - 5th	12.0 mph
Forward - 6th	16.7 mph
Reverse - 1st	2
Reverse - 2nd	4.2 mph
Reverse - 3rd	6.1 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	33.5 mph
Top Speed - Reverse	26.5 mph
Turning Radius - Outside Front Tires	350 in
Forward - 7th	23.0 mph
Forward - 8th	33.5 mph
Reverse - 4th	9.5 mph
Reverse - 5th	18.2 mph
Reverse - 6th	26.5 mph

Engine specifications
Engine Model	Cat C13 ACERT VHP
Displacement	763 in³
Power Measured @	2,000 rpm
Number of Cylinders	6
Bore	5 in
Stroke	6 in
Max Power	312.0 hp
Net Power Gears 7-8	312.0 hp
Net Torque Gears 7-8	1,261 lb-ft
Net Power Gear 5-6	312.0 hp
Net Power Gear 1-2	302.0 hp
Net Power Gear 4-6	312.0 hp
Base Power (1st Gear) - Net	297.0 hp
Derating Altitude	180,000 in
Maximum Torque	1,261 lb-ft
High - Ambient Capability	122 °
Base Power (All Gears) - Net	297.0 hp
Standard - Ambient Capability	109 °

Weights specifications
Gross Vehicle Weight - Maximum - Front Axle	24,694 lb
Gross Vehicle Weight - Maximum - Rear Axle	53,949 lb
Gross Vehicle Weight - Maximum - Total	78,643 lb
Gross Vehicle Weight - Base - Front Axle	16,345 lb
Gross Vehicle Weight - Base - Rear Axle	43,090 lb
Gross Vehicle Weight - Base - Total	59,435 lb

Hydraulic System specifications
Pump Flow	74.0 gal/min
Pump Type	Variable piston
Relief Valve Pressure	3,500 psi
Maximum system pressure	3,500 psi
Circuit Type	Electro-hydraulic load sensing closed center
Pump Output	74.0 gal/min
Standby Pressure	450 psi
Reservoir Tank Capacity	17.2 gal

Dimensions specifications
Height - Top of Cab	146 in
Wheelbase	276 in
Overall Length	393 in
Width Over Tires	122 in
Height to Top of Isomount Cab	146 in
Blade Base	121 in
Tandem Axle Wheelbase	73 in
Front Ground Clearance	28 in
Rear Ground Clearance	17 in
Width - Outside Rear Tires	122 in
Width - Outside Front Tires	122 in
Length - Front Tire to Rear of Machine	392 in
Height - Front Axle Center	27 in
Height - Exhaust Stack	134 in
Length - Front Axle to Mid Tandem	275 in
Length - Between Tandem Axles	73 in
Height - Top of Cylinders	122 in
Ground Clearance - Rear Axle	16 in
Width - Tire Center Lines	99 in
Length - Front Axle to Moldboard	121 in
Length - Counterweight to Ripper	460 in

Transmission specifications
Max Speed - Forward	33.5 mph
Max Speed - Reverse	26.5 mph
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift countershaft

Moldboard specifications
Moldboard Height	31 in
Moldboard Width	192 in
Moldboard Thickness	1 in
Side Shift Left	26 in
Side Shift Right	43 in
Max Depth of Cut	19 in
Blade Pull at Max Weight	49,156 lb
Blade Down Pressure	42,957 lb
Moldboard Length	192 in
Arc Radius	16 in
Blade Width	192 in
Cutting Edge Thickness	1 in
Cutting Edge Width	8 in
End Bit - Thickness	1 in
End Bit - Width	6 in
Throat Clearance	5 in
Blade Pull - Maximum GVW	48,554 lb
Blade Down Pressure - Base GVW	29,154 lb
Blade Down Pressure - Maximum GVW	44,047 lb

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	90 in
Maximum Shoulder Reach Outside of Tires - Right	102 in
Moldboard Sideshift - Left	26 in
Moldboard Sideshift - Right	43 in
Maximum Lift Above Ground	16 in
Blade Tip Range - Backward	5 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	26 in
Circle Centershift - Right	24 in
Maximum Blade Position Angle	65 °
Maximum Depth of Cut	19 in

Circle specifications
Max Lift Above Ground	16 in
Max Reach Outside Tires - Left	90 in
Max Reach Outside Tires - Right	102 in
Diameter	72 in
Blade Tip Angle - Front	40 °
Blade Tip Angle - Rear	5 °
Shift Left	26 in
Shift Right	24 in

Steering System specifications
Turning Radius	350 in
Articulation Angle	20 °

Power Train specifications
Brakes - Parking	Spring applied hydraulically released
Brakes - Secondary	Oil-actuated oil-disc
Brakes - Service	Oil-actuated oil-disc
Brakes - Service - Surface Area	7,724 in³
Forward/Reverse Gears	8 Fwd/6 Rev
Transmission	Direct drive power shift countershaft

Service Refill specifications
Cooling System	12.3 gal
Circle Drive Housing	2.1 gal
Engine Oil	7.9 gal
Front Wheel Spindle Bearing Housing	0.3 gal
Fuel Capacity	130.0 gal
Hydraulic System - Tank	17.2 gal
Tandem Housing - Each	32.1 gal
Transmission - Differential - Final Drives	30.1 gal
Hydraulic System - Total	30.1 gal

Ripper specifications
Penetration Force	22,140 lb
Pry-Out Force	33,788 lb
Ripper Shank Holders	7
Ripping Depth - Maximum	18 in
Machine Length Increase, Beam Raised	63 in
Shank Holder Spacing - Maximum	20 in
Shank Holder Spacing - Minimum	18 in

Frame specifications
Circle - Blade Beam Thickness	2 in
Circle - Diameter	72 in
Drawbar - Height	8 in
Front Axle - Height to Center	27 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	18 °

Tandems specifications
Drive Chain Pitch	3 in
Height	26 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	25 °
Tandem Oscillation - Front Up	15 °
Wheel Axle Spacing	73 in
Width	9 in
