Mitsubishi
Caterpillar
120G
Motor Grader
17 specifications
1 / 5

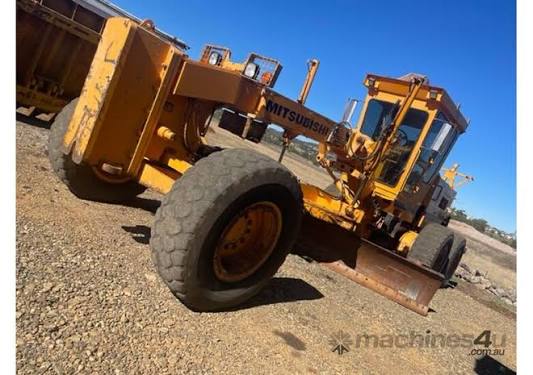

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Std Operation Weight - Total | 36,156 lb |
|---|---|
| Tire Size | 14.00-24-12 |
| Fuel Capacity | 55.5 gal |
| Hydraulic System Fluid Capacity | 17.7 gal |
| Tandem Case Fluid Capacity (each) | 7.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
| Transmission Fluid Capacity | 6.1 gal |
| Circle Gearbox Fluid Capacity | 1.0 gal |
| Oil System Fluid Capacity | 4.3 gal |
Engine
| Engine Model | 6D24-E1 |
|---|---|
| Displacement | 729 in³ |
| Power Measured @ | 2,000 rpm |
| Number of Cylinders | 6 |
| Max Power | 155.0 hp |
Hydraulic System
| Pump Flow | 26.5 gal/min |
|---|---|
| Pump Type | tandem gear |
| Relief Valve Pressure | 3 psi |
Dimensions
| Wheelbase | 247 in |
|---|---|
| Overall Length | 336 in |
| Width Over Tires | 98 in |
| Height to Top of Isomount Cab | 124 in |
| Blade Base | 106 in |
Transmission
| Max Speed - Forward | 28.1 mph |
|---|---|
| Max Speed - Reverse | 28.6 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 6 |
| Transmission Type | planetary |
Moldboard
| Moldboard Height | 24 in |
|---|---|
| Moldboard Thickness | 1 in |
Circle
| Max Lift Above Ground | 19 in |
|---|---|
| Blade Tip Angle - Front | 40 ° |
| Rotation | 360 ° |
| Blade Tip Angle - Rear | 8 ° |
| Shift Left | 78 in |
| Shift Right | 79 in |
Front Axle
| Wheel Lean | 20 ° |
|---|---|
| Oscillation - Total | 30 ° |
| Ground Clearance | 24 in |
Steering System
| Articulation Angle | 29 ° |
|---|
