Caterpillar

211

Excavator

Operating Weight
32,629 lb
Max Digging Depth
192 in
Max Digging Depth
220 in
Net Power
93.9 hp
All excavators

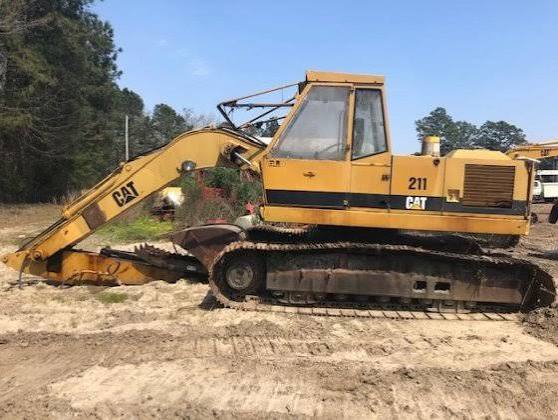

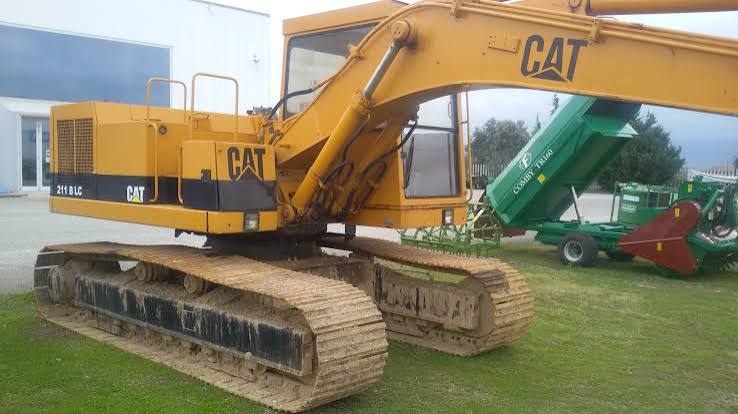

Caterpillar 211 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,629 lb
Fuel Capacity64.8 gal
Hydraulic Pump Flow Capacity57.1 gal/min
Hydraulic System Fluid Capacity87.2 gal
Hydraulic System Relief Valve Pressure4,351 psi

Engine

Engine specifications
Engine ModelT4.236
Displacement236 in³
Net Power93.9 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab121 in
Length of Track on Ground119 in
Tail Swing Radius83 in
Width to Outside of Tracks95 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge76 in
Max Travel Speed2.5 mph
Shoe Size20 in
Drawbar Pull15,354 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth192 in
Max Reach Along Ground301 in
Max Loading Height181 in
Max Cutting Height252 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth220 in
Max Cutting Height258 in
Max Reach Along Ground329 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth234 in
Max Cutting Height252 in
Max Reach Along Ground343 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth179 in
Max Cutting Height300 in
Max Reach Along Ground313 in
Max Loading Height220 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth204 in
Max Reach Along Ground340 in
Max Cutting Height312 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth223 in
Max Reach Along Ground353 in
Max Cutting Height315 in
