Caterpillar
213B LC
- Operating Weight
- 39,904 lb
- Max Digging Depth
- 205 in
- Max Digging Depth
- 224 in
- Net Power
- 110.0 hp
1 / 5

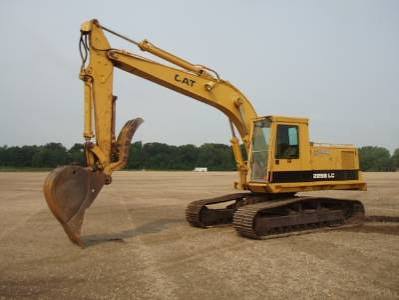

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 39,904 lb |
|---|---|
| Fuel Capacity | 75.9 gal |
| Hydraulic Pump Flow Capacity | 71.4 gal/min |
| Hydraulic System Fluid Capacity | 87.2 gal |
| Hydraulic System Relief Valve Pressure | 4,640 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | 3116 |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 110.0 hp |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 95 in |
| Width to Outside of Tracks | 108 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 89 in |
| Max Travel Speed | 2.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 51 |
| Drawbar Pull | 36,554 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 205 in |
|---|---|
| Max Reach Along Ground | 339 in |
| Max Loading Height | 220 in |
| Max Vertical Wall Digging Depth | 141 in |
| Max Cutting Height | 324 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 120 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 224 in |
|---|---|
| Max Vertical Wall Digging Depth | 151 in |
| Max Cutting Height | 333 in |
| Max Loading Height | 228 in |
| Max Reach Along Ground | 357 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 244 in |
|---|---|
| Max Cutting Height | 329 in |
| Max Loading Height | 228 in |
| Max Vertical Wall Digging Depth | 149 in |
| Max Reach Along Ground | 372 in |
| Shipping Length of Unit | 346 in |
| Shipping Height of Unit | 125 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 292 in |
|---|---|
| Max Cutting Height | 350 in |
| Max Reach Along Ground | 418 in |
| Max Loading Height | 248 in |
| Max Vertical Wall Dig Depth | 190 in |
| Shipping Length of Unit | 318 in |
