Caterpillar

215B SA

Excavator

Operating Weight
42,549 lb
Max Digging Depth
206 in
Max Digging Depth
223 in
Net Power
104.6 hp
All excavators

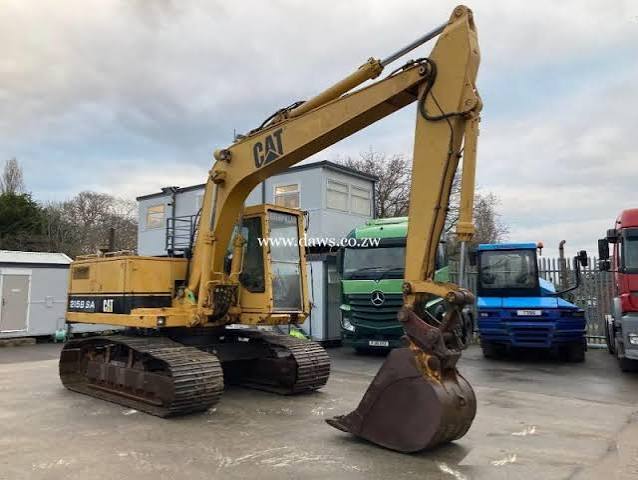

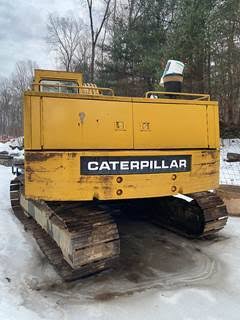

Caterpillar 215B SA Excavator
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,549 lb
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity84.1 gal/min
Hydraulic System Relief Valve Pressure4,496 psi

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Net Power104.6 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab124 in
Tail Swing Radius103 in
Width to Outside of Tracks108 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Track Gauge86 in
Max Travel Speed2.1 mph
Shoe Size22 in
Drawbar Pull29,675 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth206 in
Max Reach Along Ground332 in
Max Loading Height220 in
Max Vertical Wall Digging Depth132 in
Max Cutting Height320 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth223 in
Max Vertical Wall Digging Depth133 in
Max Cutting Height318 in
Max Loading Height220 in
Max Reach Along Ground344 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth246 in
Max Cutting Height328 in
Max Loading Height229 in
Max Vertical Wall Digging Depth152 in
Max Reach Along Ground366 in
