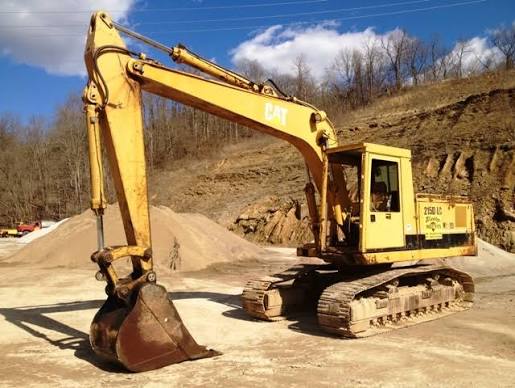

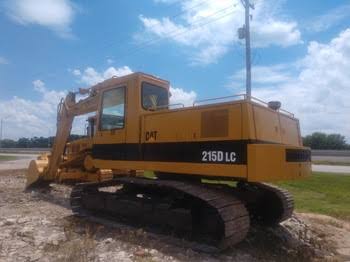

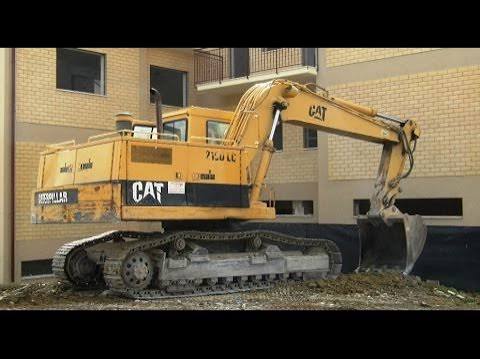

Caterpillar
215D LC
- Operating Weight
- 43,938 lb
- Max Digging Depth
- 205 in
- Max Digging Depth
- 222 in
- Net Power
- 125.0 hp
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 43,938 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| Hydraulic Pump Flow Capacity | 87.8 gal/min |
| Hydraulic System Fluid Capacity | 79.3 gal |
| Hydraulic System Relief Valve Pressure | 4,800 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 7.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3304 |
|---|---|
| Displacement | 427 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 125.0 hp |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 122 in |
| Tail Swing Radius | 106 in |
| Width to Outside of Tracks | 96 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 76 in |
| Max Travel Speed | 2.2 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 51 |
| Drawbar Pull | 33,047 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 205 in |
|---|---|
| Max Reach Along Ground | 330 in |
| Max Loading Height | 221 in |
| Max Vertical Wall Digging Depth | 134 in |
| Max Cutting Height | 316 in |
| Shipping Length of Unit | 352 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 7 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 222 in |
|---|---|
| Max Vertical Wall Digging Depth | 135 in |
| Max Cutting Height | 313 in |
| Max Loading Height | 221 in |
| Max Reach Along Ground | 342 in |
| Shipping Length of Unit | 353 in |
| Shipping Height of Unit | 126 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 245 in |
|---|---|
| Max Cutting Height | 323 in |
| Max Loading Height | 230 in |
| Max Vertical Wall Digging Depth | 156 in |
| Max Reach Along Ground | 364 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 133 in |
