Caterpillar

300.9D

Mini Excavator

Operating Weight
2,060 lb
Max Digging Depth
66 in
Net Power
13.0 hp
All mini excavators

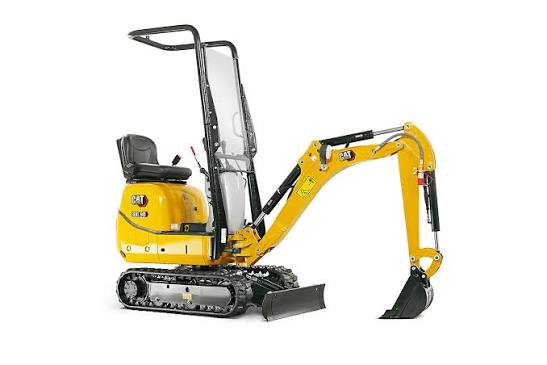

Caterpillar 300.9D Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,060 lb
Operating Weight (VPS & U300)2,399 lb

Engine

Engine specifications
Engine ModelYanmar 31NV70
Displacement52 in³
Net Power13.0 hp
Engine TypeWater cooled model 3-cylinder diesel engine

Dimensions

Dimensions specifications
Tail Swing Radius30 in
Width29 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth66 in
Max Reach Along Ground118 in

General Specifications

General Specifications specifications
Net Power13.00 hp (9.69 kw) — Starting 2021 Model Year
Operating Weight lbs (kg)2,170 (984.3) — Starting 2025 Model Year
Operating Weight2,061.00 lbs (934.86 kg) — Starting 2023 Model Year
Max Digging Depth68 in ft (20.73 m) — Starting 2023 Model Year
Digging Depth ft (m)5.7 (1.7) — Starting 2025 Model Year
Engine hp (kW)18.0 (13.4) — Starting 2025 Model Year
Digging Reach ft. (m)9.9 (3.0) — Starting 2025 Model Year
Engine31NV70 — Starting 2023 Model Year
