Yanmar

SV08-1

Mini Excavator

Operating Weight
2,348 lb
Max Digging Depth
60 in
Net Power
10.4 hp
All mini excavators

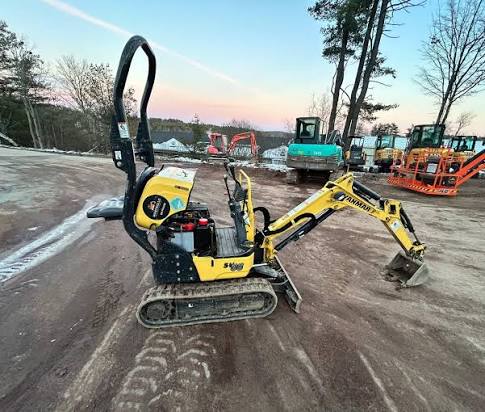

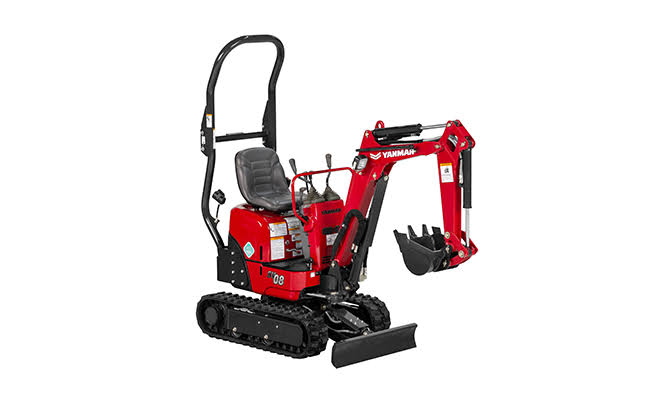

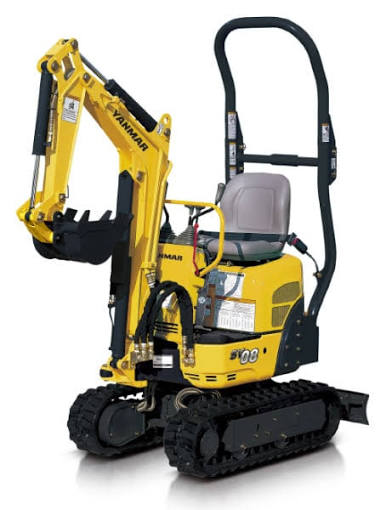

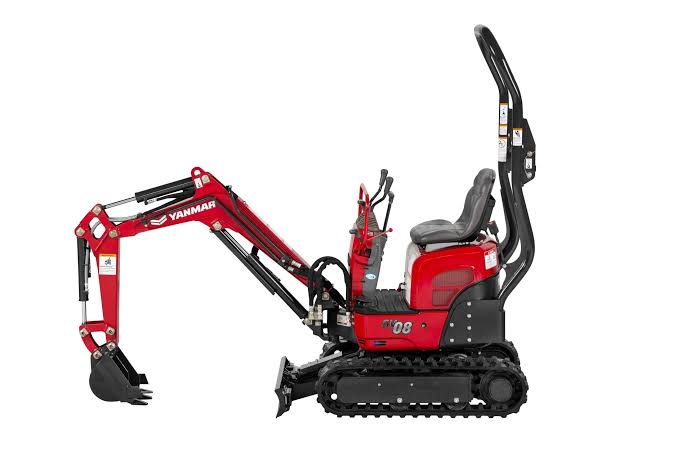

Yanmar SV08-1 Mini Excavator
1 / 5
Image 1 of 5
Image: yanmar.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,348 lb
Hydraulic Pump Flow Capacity2.8 gal/min
Hydraulic System Relief Valve Pressure2,756 psi

Engine

Engine specifications
Engine Model2TE67LBV
Displacement32 in³
Power Measured @2,400 rpm
Net Power10.4 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance9 in
Length of Track on Ground49 in
Tail Swing Radius29 in
Width to Outside of Tracks28 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.2 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth60 in
Max Reach Along Ground108 in
Max Vertical Wall Digging Depth50 in
Max Loading Height81 in
Shipping Length of Unit103 in
Shipping Height of Unit88 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
