Komatsu

PC03-2F

Mini Excavator

Operating Weight
1,958 lb
Max Digging Depth
61 in
Net Power
8.5 hp
All mini excavators

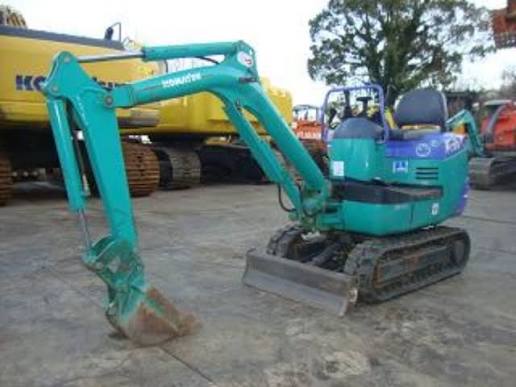

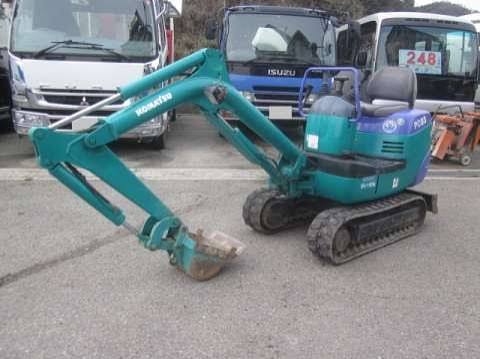

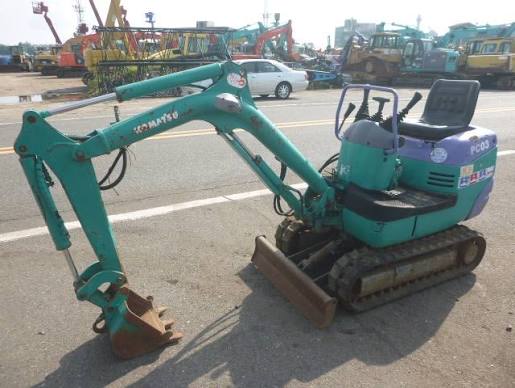

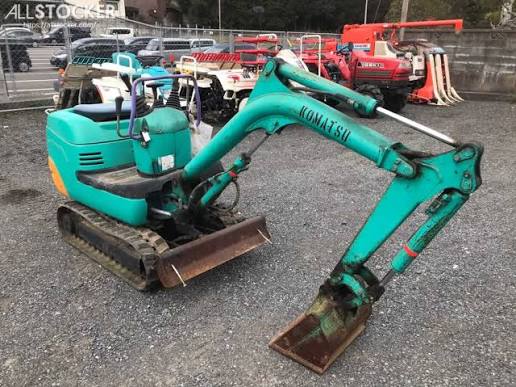

Komatsu PC03-2F Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,958 lb
Fuel Capacity3.5 gal
Hydraulic Pump Flow Capacity5.9 gal/min
Hydraulic System Fluid Capacity4.4 gal
Hydraulic System Relief Valve Pressure2,276 psi

Engine

Engine specifications
Engine Model2D68E-3A
Displacement32 in³
Power Measured @2,200 rpm
Net Power8.5 hp
Number of Cylinders2
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab50 in
Length of Track on Ground36 in
Tail Swing Radius31 in
Width to Outside of Tracks32 in
Removal Counterweight Clearance15 in

Undercarriage

Undercarriage specifications
Track Gauge25 in
Max Travel Speed1.4 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth61 in
Max Reach Along Ground113 in
Max Vertical Wall Digging Depth35 in
Max Loading Height79 in
Shipping Length of Unit108 in
Max Cutting Height114 in
Shipping Height of Unit50 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
