Hitachi

ZX10U-2

Mini Excavator

Operating Weight
2,447 lb
Max Digging Depth
71 in
Net Power
12.8 hp
All mini excavators

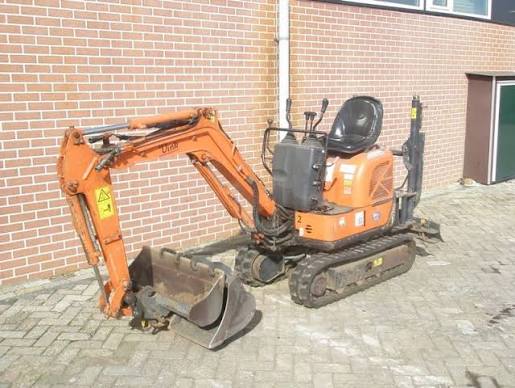

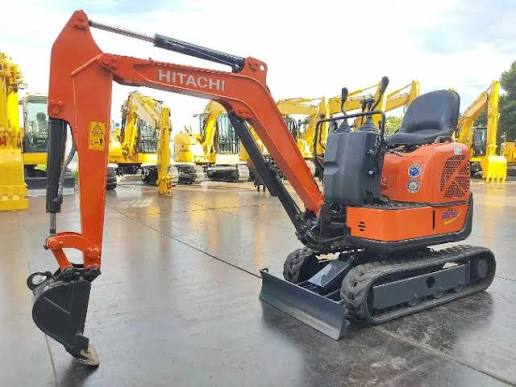

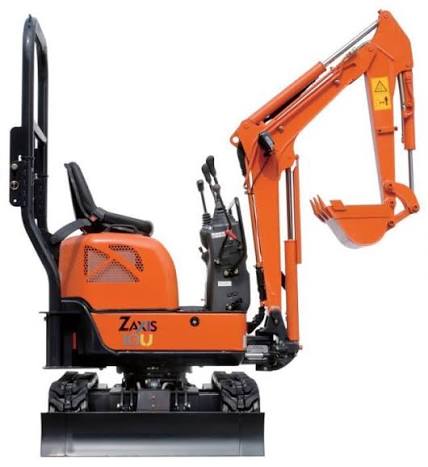

Hitachi ZX10U-2 Mini Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,447 lb
Fuel Capacity4.3 gal
Hydraulic Pump Flow Capacity5.7 gal/min
Hydraulic System Fluid Capacity4.8 gal
Hydraulic System Relief Valve Pressure2,567 psi
Operating Voltage12 V
Engine Oil Capacity0.8 gal
Cooling System Fluid Capacity0.9 gal

Engine

Engine specifications
Engine Model3TNV70
Displacement52 in³
Power Measured @2,100 rpm
Net Power12.8 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque37 lb-ft

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab85 in
Length of Track on Ground42 in
Tail Swing Radius33 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge32 in
Number of Track Rollers per Side3
Max Travel Speed2.5 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth71 in
Max Vertical Wall Digging Depth66 in
Max Loading Height88 in
Shipping Length of Unit118 in
Max Cutting Height119 in
Shipping Height of Unit57 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
