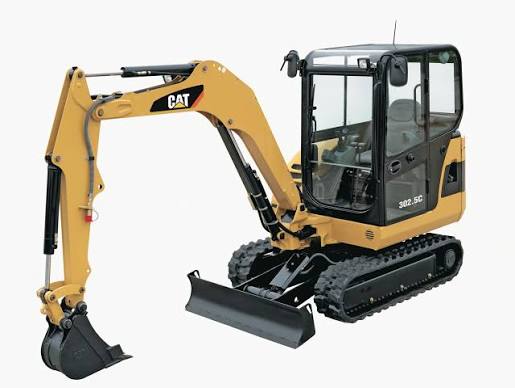

302.5

Specifications

82 data points

Operating Specifications specifications
Operating Weight	6,027 lb
Fuel Capacity	11.0 gal
Hydraulic System Fluid Capacity	13.3 gal
Hydraulic System Relief Valve Pressure	2,987 psi

Weights specifications
Operating Weight - With Cab	6,015 lb
Operating Weight	5,762 lb

Hydraulic System specifications
Operating Pressure - Equipment	2,987 psi
Operating Pressure - Swing	2,494 psi
Operating Pressure - Travel	2,987 psi
Digging Force - Bucket	4,928 lb
Digging Force - Stick - Standard	3,124 lb
Digging Force - Stick - Long	2,665 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	13.5 gal/min
Pump - Gear (Tandem)	8.8 gal/min
Pump - Gear (Single)	4.9 gal/min

Dimensions specifications
Ground Clearance	13 in
Height - Top of Cab	91 in
Length of Track on Ground	59 in
Tail Swing Radius	50 in
Width to Outside of Tracks	46 in
Removal Counterweight Clearance	23 in
Track Gauge	46 in
Shipping Length	179 in
Track Shoe Width	144 in
Height - Over Cab	91 in
Maximum Reach - Ground Level - Standard Stick	180 in
Maximum Digging Depth - Standard Stick	104 in
Maximum Dump Height - Standard Stick	122 in
Maximum Cutting Height - Standard Stick	173 in
Maximum Vertical Dig Depth - Standard Stick	84 in
Swing Radius - Rear	50 in
Maximum Dump Height - Long Stick	128 in
Maximum Cutting Height - Long Stick	179 in
Maximum Vertical Dig Depth - Long Stick	95 in
Maximum Horizontal Reach - Standard Stick	185 in
Maximum Horizontal Reach - Long Stick	194 in
Width - Over Track	57 in
Maximum Digging Depth - Long Stick	117 in
Center Ground Clearance	12 in
Height - Over Canopy	91 in
Width - Upper Structure	54 in
Maximum Reach - Ground Level - Long Stick	191 in
Stick Length - Standard Stick	44 in
Stick Length - Long Stick	56 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	104 in
Max Reach Along Ground	180 in
Max Vertical Wall Digging Depth	84 in
Max Loading Height	122 in
Max Cutting Height	173 in

Boom/Stick Excavator Option 2 specifications
Max Digging Depth	117 in
Max Cutting Height	179 in
Max Loading Height	128 in
Max Vertical Wall Digging Depth	95 in
Max Reach Along Ground	194 in

Electrical System specifications
Electrical System Type	Twelve-volt system
