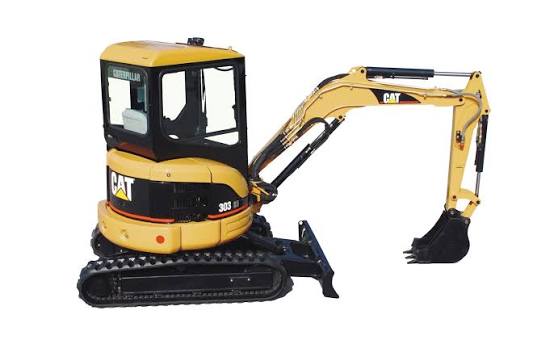

303 CR

Specifications

65 data points

Operating Specifications specifications
Operating Weight	7,403 lb

Weights specifications
Operating Weight - With Cab	7,524 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,550 psi
Operating Pressure - Swing	3,550 psi
Operating Pressure - Travel	3,550 psi
Digging Force - Bucket	6,000 lb
Digging Force - Stick - Standard	3,822 lb
Digging Force - Stick - Long	3,484 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	13.1 gal/min
Pump - Gear (Tandem)	8.7 gal/min
Pump - Gear (Single)	6.2 gal/min
Auxiliary Circuit - Primary	13.1 gal/min

Dimensions specifications
Digging Depth	108 in
Digging Reach	108 in
Track Gauge	49 in
Shipping Length	185 in
Track Shoe Width	12 in
Maximum Reach - Ground Level - Standard Stick	207 in
Height - Over Cab	98 in
Maximum Digging Depth - Standard Stick	119 in
Maximum Dump Height - Standard Stick	125 in
Maximum Dump Height - Long Stick	130 in
Swing Radius - Rear	36 in
Maximum Vertical Dig Depth - Standard Stick	101 in
Maximum Cutting Height - Standard Stick	183 in
Maximum Cutting Height - Long Stick	186 in
Maximum Vertical Dig Depth - Long Stick	98 in
Maximum Horizontal Reach - Long Stick	216 in
Maximum Horizontal Reach - Standard Stick	207 in
Width - Over Track	61 in
Maximum Digging Depth - Long Stick	122 in
Center Ground Clearance	13 in
Width - Upper Structure	65 in
Height - Over Canopy	98 in
Maximum Reach - Ground Level - Long Stick	193 in

Electrical System specifications
Electrical System Type	Twelve-volt system
