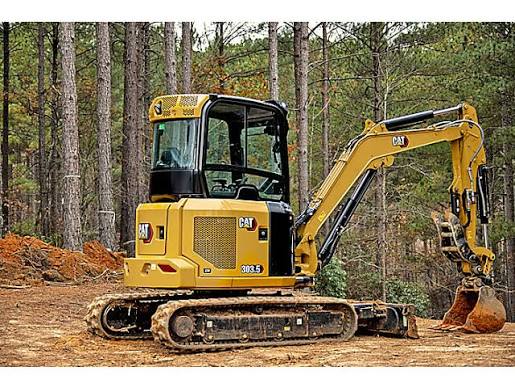

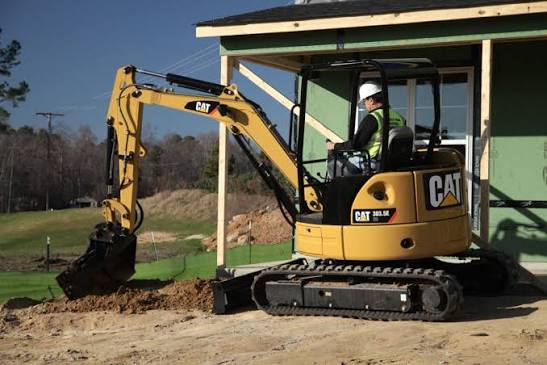

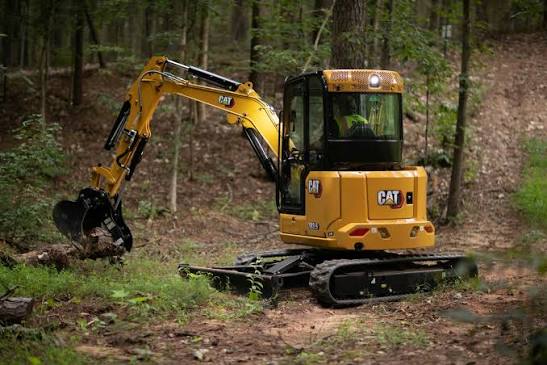

303.5

Specifications

58 data points

Weights specifications
Operating Weight - With Cab	7,810 lb

Hydraulic System specifications
Operating Pressure - Equipment	2,987 psi
Operating Pressure - Swing	2,494 psi
Operating Pressure - Travel	2,987 psi
Digging Force - Bucket	5,742 lb
Digging Force - Stick - Standard	4,114 lb
Digging Force - Stick - Long	3,080 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	17.4 gal/min
Pump - Gear (Tandem)	10.0 gal/min
Pump - Gear (Single)	7.5 gal/min

Dimensions specifications
Track Gauge	49 in
Shipping Length	202 in
Track Shoe Width	144 in
Maximum Reach - Ground Level - Standard Stick	204 in
Height - Over Cab	96 in
Maximum Digging Depth - Standard Stick	125 in
Maximum Dump Height - Standard Stick	143 in
Maximum Cutting Height - Standard Stick	199 in
Swing Radius - Rear	56 in
Maximum Cutting Height - Long Stick	207 in
Maximum Vertical Dig Depth - Standard Stick	95 in
Maximum Dump Height - Long Stick	151 in
Maximum Vertical Dig Depth - Long Stick	109 in
Maximum Horizontal Reach - Long Stick	223 in
Maximum Horizontal Reach - Standard Stick	209 in
Width - Over Track	61 in
Maximum Digging Depth - Long Stick	142 in
Center Ground Clearance	12 in
Width - Upper Structure	61 in
Height - Over Canopy	96 in
Maximum Reach - Ground Level - Long Stick	219 in
Stick Length - Standard Stick	49 in
Stick Length - Long Stick	66 in

Electrical System specifications
Electrical System Type	Twelve-volt system
