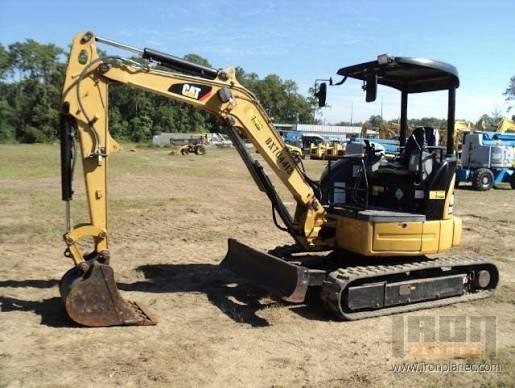

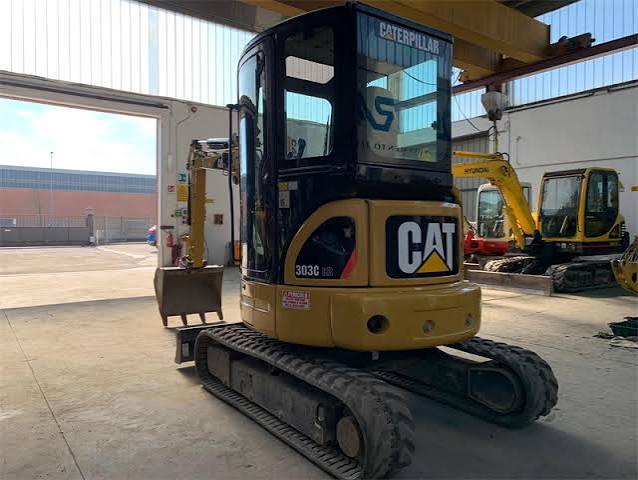

303C CR

Specifications

84 data points

Operating Specifications specifications
Operating Weight	7,835 lb
Fuel Capacity	11.9 gal
Hydraulic Pump Flow Capacity	23.2 gal/min
Hydraulic System Fluid Capacity	17.2 gal
Hydraulic System Relief Valve Pressure	3,553 psi
Operating Voltage	12 V
Alternator Supplied Amperage	50 A
Engine Oil Capacity	1.6 gal
Cooling System Fluid Capacity	1.6 gal

Weights specifications
Operating Weight - With Cab	7,835 lb
Operating Weight	7,573 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,495 psi
Operating Pressure - Travel	3,553 psi
Digging Force - Bucket	7,419 lb
Digging Force - Stick - Standard	4,249 lb
Digging Force - Stick - Long	3,799 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	15.9 gal/min

Dimensions specifications
Ground Clearance	13 in
Height - Top of Cab	98 in
Length of Track on Ground	88 in
Tail Swing Radius	31 in
Width to Outside of Tracks	61 in
Removal Counterweight Clearance	23 in
Transport Width	61 in
Track Gauge	49 in
Shipping Height	98 in
Shipping Length	187 in
Track Shoe Width	12 in
Height - Over Cab	98 in
Maximum Digging Depth - Standard Stick	115 in
Maximum Reach - Ground Level - Standard Stick	202 in
Maximum Dump Height - Standard Stick	138 in
Swing Radius - Rear	36 in
Maximum Cutting Height - Standard Stick	196 in
Maximum Vertical Dig Depth - Standard Stick	85 in
Maximum Dump Height - Long Stick	143 in
Maximum Cutting Height - Long Stick	199 in
Maximum Horizontal Reach - Standard Stick	202 in
Maximum Horizontal Reach - Long Stick	211 in
Width - Over Track	61 in
Maximum Digging Depth - Long Stick	126 in

Undercarriage specifications
Max Travel Speed	4.6 mph
Shoe Size	12 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	117 in
Max Reach Along Ground	203 in
Max Vertical Wall Digging Depth	85 in
Max Loading Height	138 in
Shipping Length of Unit	203 in
Max Cutting Height	196 in
Shipping Height of Unit	100 in

Swing Mechanism specifications
Swing Speed	9 rpm

Boom/Stick Excavator Option 2 specifications
Max Digging Depth	117 in
Max Cutting Height	200 in
Max Loading Height	121 in
Max Vertical Wall Digging Depth	101 in
Max Reach Along Ground	212 in
Shipping Height of Unit	100 in
Shipping Length of Unit	190 in
