Caterpillar

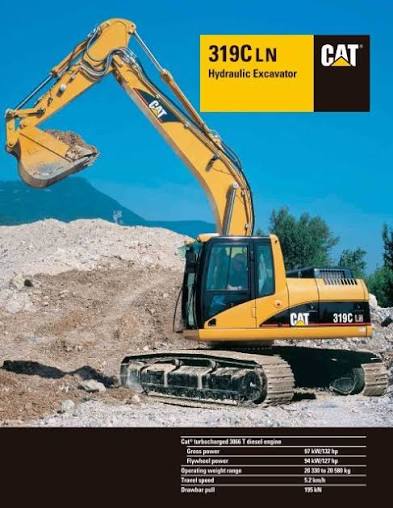

319C LN
- Operating Weight
- 45,371 lb
- Max Digging Depth
- 215 in
- Max Digging Depth
- 233 in
- Net Power
- 127.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 45,371 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 100.4 gal/min |
| Hydraulic System Fluid Capacity | 49.7 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Swing Drive Fluid Capacity | 2.2 gal |
Engine
| Engine Model | 3066 T |
|---|---|
| Displacement | 391 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 132.0 hp |
| Net Power | 127.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 100 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Drawbar Pull | 44,063 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 215 in |
|---|---|
| Max Reach Along Ground | 325 in |
| Max Loading Height | 234 in |
| Max Vertical Wall Digging Depth | 202 in |
| Max Cutting Height | 341 in |
| Shipping Length of Unit | 355 in |
| Shipping Height of Unit | 117 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 233 in |
|---|---|
| Max Vertical Wall Digging Depth | 222 in |
| Max Cutting Height | 354 in |
| Max Loading Height | 245 in |
| Max Reach Along Ground | 342 in |
| Shipping Length of Unit | 352 in |
| Shipping Height of Unit | 117 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 250 in |
|---|---|
| Max Cutting Height | 366 in |
| Max Loading Height | 257 in |
| Max Vertical Wall Digging Depth | 241 in |
| Max Reach Along Ground | 360 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 119 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 270 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Reach Along Ground | 380 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Dig Depth | 258 in |
| Shipping Length of Unit | 350 in |
