Komatsu

PC130-6 MIGHTY

Excavator

Operating Weight
27,227 lb
Max Digging Depth
219 in
Net Power
85.9 hp
All excavators

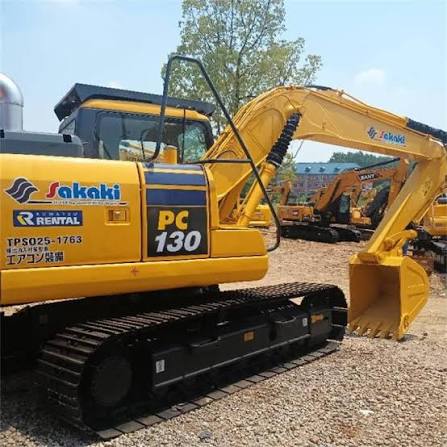

Komatsu PC130-6 MIGHTY Excavator
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,227 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity59.8 gal/min
Hydraulic System Fluid Capacity26.5 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelS4D102E
Displacement239 in³
Power Measured @2,200 rpm
Net Power85.9 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab108 in
Length of Track on Ground109 in
Tail Swing Radius84 in
Width to Outside of Tracks97 in
Removal Counterweight Clearance35 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge78 in
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground323 in
Max Loading Height244 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height340 in
Shipping Length of Unit300 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
