Caterpillar

319D L

Excavator

Operating Weight
43,872 lb
Max Digging Depth
234 in
Max Digging Depth
252 in
Net Power
125.0 hp
All excavators

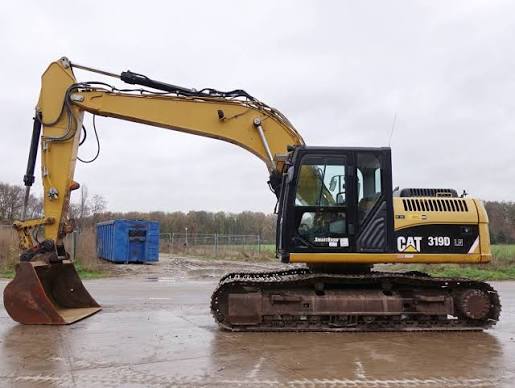

Caterpillar 319D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,872 lb
Fuel Capacity79.3 gal
Hydraulic Pump Flow Capacity7.1 gal/min
Hydraulic System Fluid Capacity50.2 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity5.2 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.2 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelC4.2 ACERT
Displacement256 in³
Gross Power131.0 hp
Net Power125.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab114 in
Length of Track on Ground144 in
Tail Swing Radius100 in
Width to Outside of Tracks115 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge88 in
Max Travel Speed3.0 mph
Shoe Size28 in
Drawbar Pull46,468 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth234 in
Max Reach Along Ground342 in
Max Loading Height243 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height350 in
Shipping Length of Unit348 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth252 in
Max Vertical Wall Digging Depth202 in
Max Cutting Height362 in
Max Loading Height254 in
Max Reach Along Ground359 in
Shipping Length of Unit347 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth272 in
Max Cutting Height379 in
Max Loading Height270 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground380 in
Shipping Length of Unit346 in
Shipping Height of Unit139 in
