Caterpillar

320B LN

Excavator

Operating Weight
45,878 lb
Max Digging Depth
263 in
Max Digging Depth
243 in
Net Power
128.0 hp
All excavators

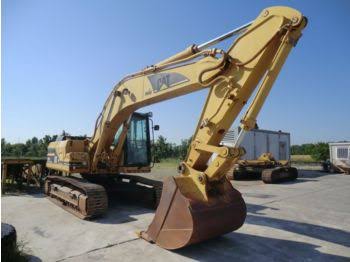

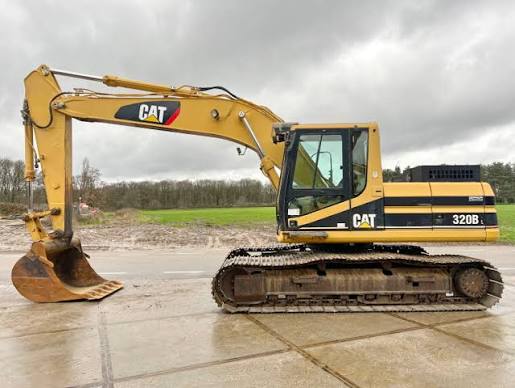

Caterpillar 320B LN Excavator
1 / 5
Image 1 of 5
Image: hwpartstore.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,878 lb
Fuel Capacity76.7 gal
Hydraulic Pump Flow Capacity97.8 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3116T
Displacement403 in³
Net Power128.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab120 in
Length of Track on Ground144 in
Tail Swing Radius109 in
Width to Outside of Tracks103 in
Removal Counterweight Clearance40 in

Undercarriage

Undercarriage specifications
Track Gauge79 in
Max Travel Speed3.5 mph
Shoe Size20 in
Drawbar Pull39,800 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth263 in
Max Reach Along Ground381 in
Max Loading Height263 in
Max Vertical Wall Digging Depth215 in
Max Cutting Height371 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth243 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height362 in
Max Loading Height254 in
Max Reach Along Ground366 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth224 in
Max Cutting Height346 in
Max Loading Height233 in
Max Vertical Wall Digging Depth142 in
Max Reach Along Ground348 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth227 in
Max Cutting Height336 in
Max Reach Along Ground348 in
Max Loading Height230 in
Max Vertical Wall Dig Depth152 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth207 in
Max Reach Along Ground329 in
Max Cutting Height346 in
Max Loading Height222 in
Max Vertical Wall Dig Depth135 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth227 in
Max Reach Along Ground348 in
Max Cutting Height336 in
Max Loading Height230 in
Max Vertical Wall Dig Depth152 in
Shipping Length of Unit350 in
Shipping Height of Unit127 in
