Caterpillar

320B N

Excavator

Operating Weight
43,938 lb
Max Digging Depth
299 in
Max Digging Depth
261 in
Net Power
128.0 hp
All excavators

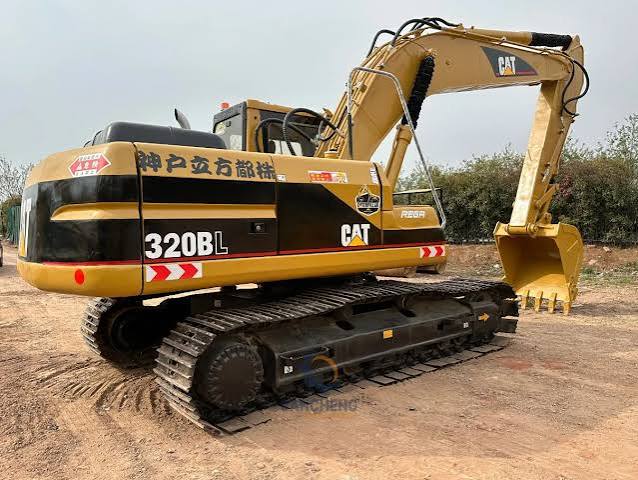

Caterpillar 320B N Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,938 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity97.8 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3066T
Displacement391 in³
Net Power128.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground130 in
Tail Swing Radius109 in
Width to Outside of Tracks100 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Track Gauge88 in
Max Travel Speed3.5 mph
Shoe Size20 in
Drawbar Pull39,800 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth299 in
Max Reach Along Ground419 in
Max Loading Height274 in
Max Vertical Wall Digging Depth269 in
Max Cutting Height384 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth261 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height373 in
Max Loading Height259 in
Max Reach Along Ground385 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth243 in
Max Cutting Height361 in
Max Loading Height254 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground367 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth222 in
Max Cutting Height347 in
Max Reach Along Ground346 in
Max Loading Height235 in
Max Vertical Wall Dig Depth185 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth226 in
Max Reach Along Ground346 in
Max Cutting Height346 in
Max Loading Height234 in
Max Vertical Wall Dig Depth194 in
Shipping Height of Unit121 in
Shipping Length of Unit355 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth205 in
Max Reach Along Ground328 in
Max Cutting Height337 in
Max Loading Height224 in
Max Vertical Wall Dig Depth175 in
Shipping Length of Unit355 in
Shipping Height of Unit121 in
