Caterpillar

330C LN

Excavator

Operating Weight
76,434 lb
Max Digging Depth
197 in
Max Digging Depth
216 in
Net Power
243.0 hp
All excavators

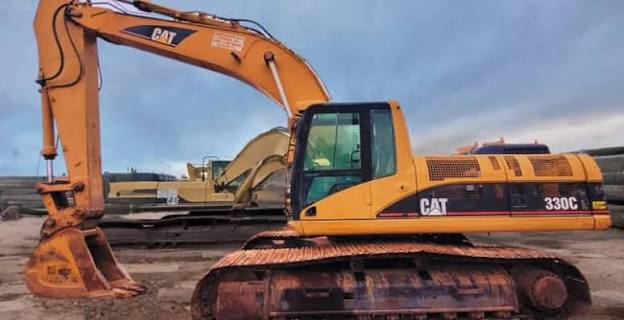

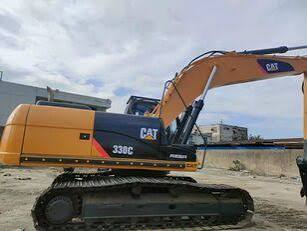

Caterpillar 330C LN Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

64 data points

Operating Specifications

Operating Specifications specifications
Operating Weight76,434 lb
Fuel Capacity163.3 gal
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Fluid Capacity108.4 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity9.4 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity5.1 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelC-9 ATAAC
Displacement537 in³
Power Measured @1,800 rpm
Gross Power264.0 hp
Net Power243.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab130 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance57 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge95 in
Max Travel Speed3.2 mph
Shoe Size24 in
Drawbar Pull66,094 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth197 in
Max Reach Along Ground419 in
Max Loading Height340 in
Max Vertical Wall Digging Depth161 in
Max Cutting Height481 in
Shipping Length of Unit468 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth216 in
Max Vertical Wall Digging Depth172 in
Max Cutting Height503 in
Max Loading Height372 in
Max Reach Along Ground441 in
Shipping Length of Unit454 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth231 in
Max Cutting Height512 in
Max Loading Height381 in
Max Vertical Wall Digging Depth189 in
Max Reach Along Ground454 in
Shipping Length of Unit454 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth259 in
Max Cutting Height539 in
Max Reach Along Ground482 in
Max Loading Height408 in
Max Vertical Wall Dig Depth214 in
Shipping Length of Unit449 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth292 in
Max Reach Along Ground515 in
Max Cutting Height565 in
Max Loading Height441 in
Max Vertical Wall Dig Depth248 in
Shipping Height of Unit196 in
Shipping Length of Unit434 in
