Sany

SY210

Excavator

Operating Weight
46,077 lb
Max Digging Depth
261 in
Net Power
150.2 hp
All excavators

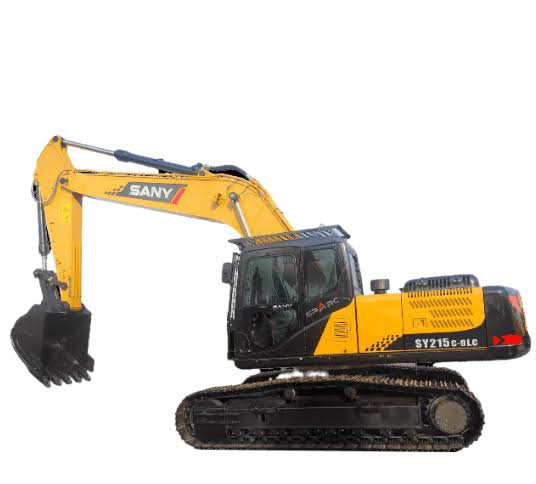

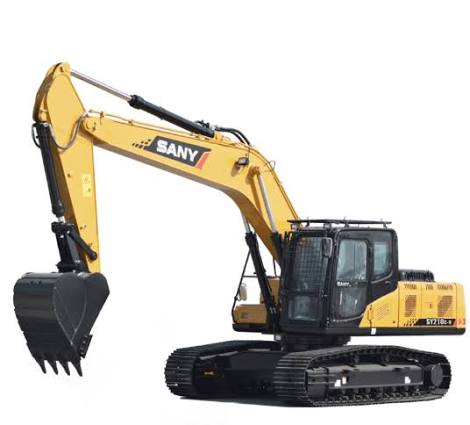

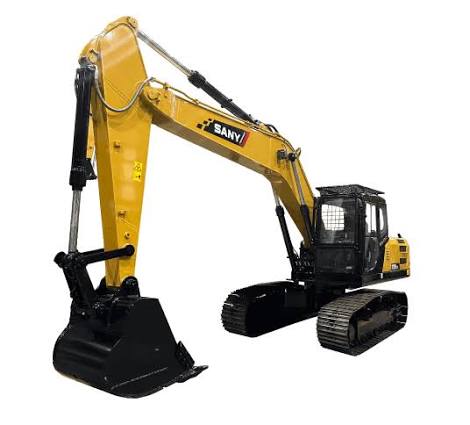

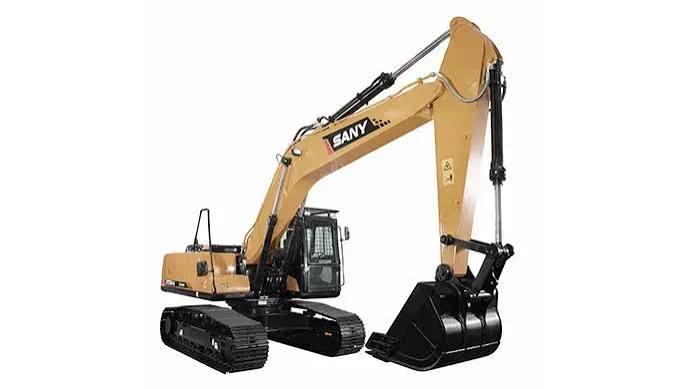

Sany SY210 Excavator
1 / 5
Image 1 of 5
Image: sanyexcavator.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,077 lb
Hydraulic Pump Flow Capacity111.0 gal/min

Engine

Engine specifications
Engine Model6BTAA5.9-C
Displacement360 in³
Power Measured @1,950 rpm
Net Power150.2 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground137 in
Tail Swing Radius144 in
Width to Outside of Tracks118 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth261 in
Max Reach Along Ground390 in
Max Loading Height256 in
Max Vertical Wall Digging Depth236 in
Shipping Length of Unit371 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
