Caterpillar

345B

Excavator

Operating Weight
94,799 lb
Max Digging Depth
326 in
Max Digging Depth
301 in
Net Power
290.0 hp
All excavators

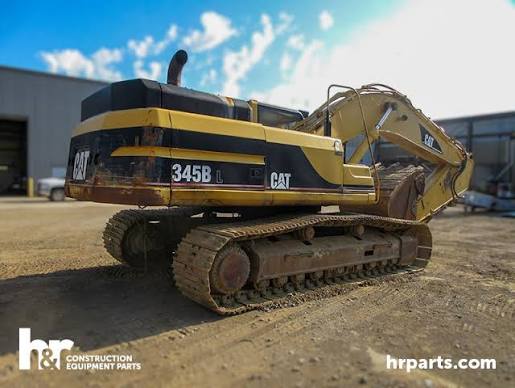

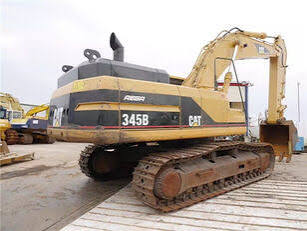

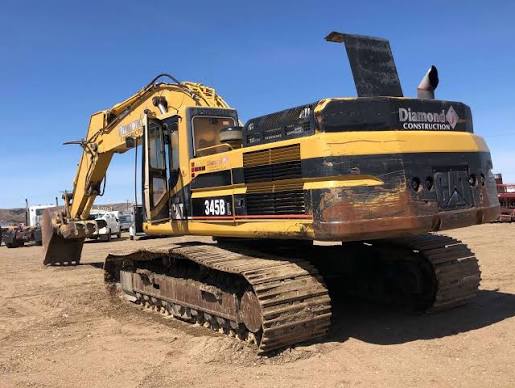

Caterpillar 345B Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight94,799 lb
Fuel Capacity158.6 gal
Hydraulic Pump Flow Capacity169.1 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3176CATAAC
Displacement629 in³
Net Power290.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground159 in
Tail Swing Radius143 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance52 in

Undercarriage

Undercarriage specifications
Track Gauge108 in
Max Travel Speed2.8 mph
Shoe Size24 in
Drawbar Pull72,400 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth326 in
Max Reach Along Ground481 in
Max Loading Height84 in
Max Vertical Wall Digging Depth257 in
Max Cutting Height426 in
Shipping Length of Unit462 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth301 in
Max Vertical Wall Digging Depth259 in
Max Cutting Height425 in
Max Loading Height110 in
Max Reach Along Ground459 in
Shipping Length of Unit462 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth285 in
Max Cutting Height418 in
Max Loading Height126 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground445 in
Shipping Length of Unit462 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth280 in
Max Cutting Height404 in
Max Reach Along Ground434 in
Max Loading Height110 in
Max Vertical Wall Dig Depth222 in
Shipping Length of Unit449 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth264 in
Max Reach Along Ground420 in
Max Cutting Height401 in
Max Loading Height126 in
Max Vertical Wall Dig Depth197 in
Shipping Height of Unit145 in
Shipping Length of Unit449 in
