Hitachi

ZX245USLC-6

Excavator

Operating Weight
56,879 lb
Max Digging Depth
217 in
Max Digging Depth
236 in
Net Power
159.0 hp
All excavators

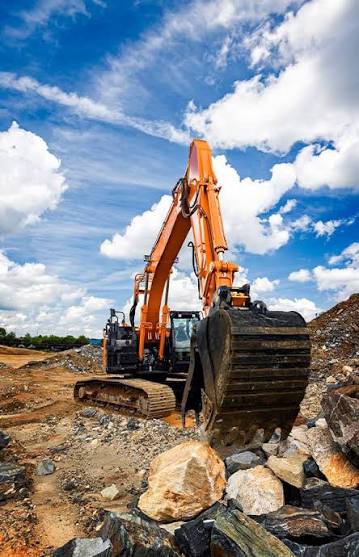

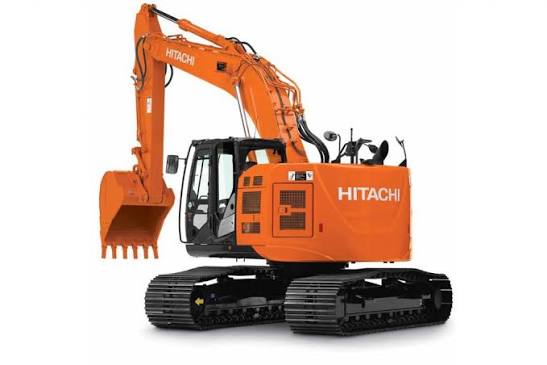

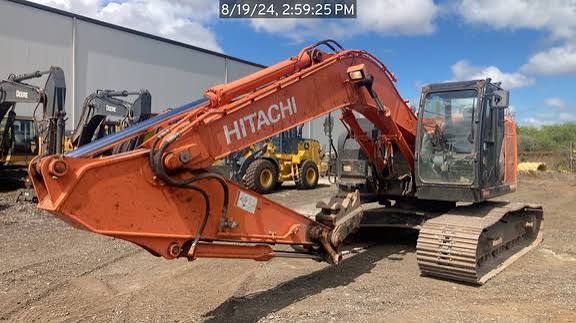

Hitachi ZX245USLC-6 Excavator
1 / 5
Image 1 of 5
Image: steenent.com

Specifications

69 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,879 lb

Engine

Engine specifications
Engine Model4HK1
Displacement317 in³
Power Measured @2,000 rpm
Net Power159.0 hp
AspirationTurbocharged and charged air cooled
Engine MakeIsuzu
Cooling systemDirect-drive suction-type fan
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Main pump - Maximum flow162.0 gal
Hydraulic System TypeOpen center load sensing
Implement - Operating Pressure4,975 psi
Travel - Operating Pressure5,149 psi
ControlsPilot levers
Main pump type3 variable-displacement axial-piston pumps

Dimensions

Dimensions specifications
Ground Clearance17 in
Counterweight Clearance33 in
Length2,902 in
Undercarriage Overall Length142 in
Cab height114 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull11,216 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank100.4 gal
Hydraulic system63.5 gal
Hydraulic Tank34.4 gal
Cooling system7.4 gal
Engine oil with filter6.1 gal
Diesel exhaust fluid (DEF) tank4.3 gal
Swing drive1.7 gal
Propel1.8 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground325 in
Max Vertical Wall Digging Depth187 in
Max Cutting Height366 in
Max Digging Reach331 in
Max.Dumping Height270 in
Bucket Digging Force - SAE20,458 lb
Bucket Digging Force - ISO23,380 lb
Arm Digging Force - ISO15,512 lb
Arm Digging Force - SAE15,062 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth236 in
Max Vertical Wall Digging Depth205 in
Max Cutting Height381 in
Max Reach Along Ground344 in
Minimum swing radius97 in
Max Digging Reach349 in
Max.Dumping Height284 in
Bucket Digging Force - SAE20,458 lb
Bucket Digging Force - ISO23,380 lb
Arm Digging Force - SAE13,489 lb
Arm Digging Force - ISO13,713 lb

Electrical System

Electrical System specifications
Batteries2 volts
Battery capacity—
Alternator rating50 amp
Work Lights2 halogen

Cylinders

Cylinders specifications
Bore (Boom)5 in
Bore (Bucket)42 in
Stroke (Bucket)3 in
Bore (Arm)5 in
Stroke (Arm)58 in
Stroke (Boom)50 in
Rod Diameter (Arm)4 in
Rod Diameter (Boom)3 in
Rod Diameter (Bucket)3 in
