Caterpillar

374F L

Excavator

Operating Weight
156,881 lb
Max Digging Depth
380 in
Max Digging Depth
360 in
All excavators

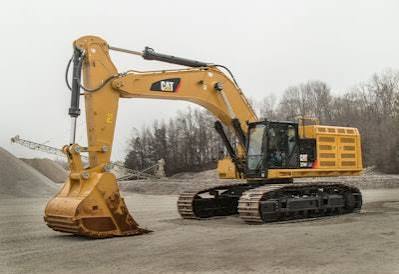

Caterpillar 374F L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

90 data points

Operating Specifications

Operating Specifications specifications
Operating Weight156,881 lb
Fuel Capacity261.6 gal
Hydraulic Pump Flow Capacity227.2 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine ModelCat C15 ACERT
Displacement928 in³
Gross Power472.1 hp
Engine MakeCaterpillar
Bore5 in
Stroke7 in
EmissionsThe 374F L meets U.S. EPA Tier 4 Final EU Stage IV and Korea Tier 4 emission standards.

Weights

Weights specifications
Operating Weight165,721 lb
Maximum Operating Weight165,721 lb
Minimum Operating Weight156,461 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,264 psi
Maximum Pressure - Travel5,076 psi
Boom Cylinder - Bore8 in
Boom Cylinder - Stroke71 in
Stick Cylinder - Bore8 in
Stick Cylinder - Stroke83 in
Maximum Pressure - Equipment - Normal5,366 psi
Swing System - Maximum Flow—
Pilot System - Maximum Pressure580 – 638 psi
Main System - Maximum Flow ( 2 pumps) - Implement118.0 gal/min
Main System - Maximum Flow ( 2 pumps) - Travel126.0 gal/min
Main System - Maximum Flow - Total - Implement237.0 gal/min
Main System - Maximum Flow - Total - Travel251.0 gal/min
VB2 Family Bucket Cylinder - Bore8 in
VB2 Family Bucket Cylinder - Stroke56 in
WB2 Family Bucket Cylinder - Bore8 in
WB2 Family Bucket Cylinder - Stroke57 in

Dimensions

Dimensions specifications
Ground Clearance33 in
Height - Top of Cab157 in
Length of Track on Ground186 in
Tail Swing Radius158 in
Width to Outside of Tracks109 in
Removal Counterweight Clearance61 in

Undercarriage

Undercarriage specifications
Track Gauge109 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth380 in
Max Reach Along Ground560 in
Max Loading Height355 in
Max Vertical Wall Digging Depth336 in
Max Cutting Height377 in
Shipping Length of Unit522 in
Shipping Height of Unit197 in

Drive System

Drive System specifications
Maximum Drawbar Pull110,718 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System20.0 gal
Hydraulic System - Including Tank193.0 gal
Final Drive - Each5.8 gal
Engine Oil16.0 gal
Hydraulic Tank162.0 gal
Fuel Tank Capacity247.0 gal
Swing Drive - Each3.2 gal
DEF Tank13.0 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth360 in
Max Vertical Wall Digging Depth309 in
Max Cutting Height355 in
Max Loading Height341 in
Max Reach Along Ground540 in
Shipping Length of Unit524 in
Shipping Height of Unit183 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth339 in
Max Cutting Height333 in
Max Loading Height131 in
Max Vertical Wall Digging Depth281 in
Max Reach Along Ground520 in
Shipping Length of Unit526 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth308 in
Max Cutting Height302 in
Max Reach Along Ground494 in
Max Loading Height161 in
Max Vertical Wall Dig Depth263 in
Shipping Length of Unit529 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88 ISO 10262:2008

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth301 in
Max Reach Along Ground467 in
Max Cutting Height296 in
Max Loading Height121 in
Max Vertical Wall Dig Depth174 in
Shipping Height of Unit186 in
Shipping Length of Unit498 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth285 in
Max Reach Along Ground451 in
Max Cutting Height278 in
Max Loading Height278 in
Max Vertical Wall Dig Depth159 in
Shipping Length of Unit499 in
Shipping Height of Unit182 in
