Komatsu

PC400-1

Excavator

Net Power
263.0 hp
All excavators

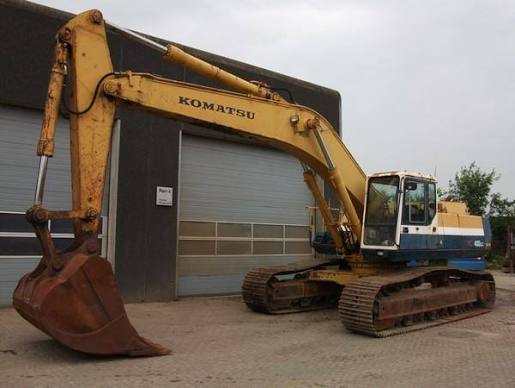

Komatsu PC400-1 Excavator
1 / 5
Image 1 of 5
Image: hawkexcavator.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity118.9 gal
Hydraulic System Fluid Capacity79.3 gal
Swing Speed7 rpm

Engine

Engine specifications
Engine ModelCummins NT855C
Displacement855 in³
Net Power263.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Height - Top of Cab130 in
Length of Track on Ground149 in
Upper Structure Ground Clearance52 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.0 mph
Loading Shovel Operating Weight94,799 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure12 psi
Backhoe Shoe Width 124 in
Backhoe Operating Weight - Shoe 188,185 lb
Backhoe Ground Pressure - Shoe 111 psi
Backhoe Shoe Width 230 in
Backhoe Ground Pressure - Shoe 29 psi

Loading Shovel

Loading Shovel specifications
Max Dig Depth167 in
Max Cutting Height388 in
Max Dump Height276 in
Max Dig Reach344 in
Arm Crowd Force65,034 lb-ft

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth298 in
Max Cutting Height426 in
Max Dump Height296 in
Max Reach on Ground455 in
Max Vertical Wall Dig Depth259 in
Arm Crowd Force35,270 lb-ft

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth354 in
Max Cutting Height449 in
Max Dump Height316 in
Max Reach on Ground507 in
Max Vertical Wall Dig Depth320 in
Arm Crowd Force27,117 lb-ft
