Caterpillar

385C FS

Excavator

Operating Weight
199,739 lb
All excavators

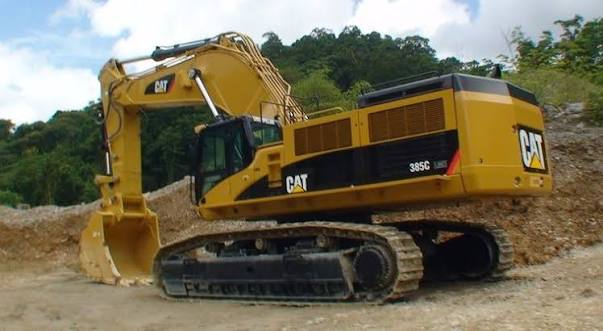

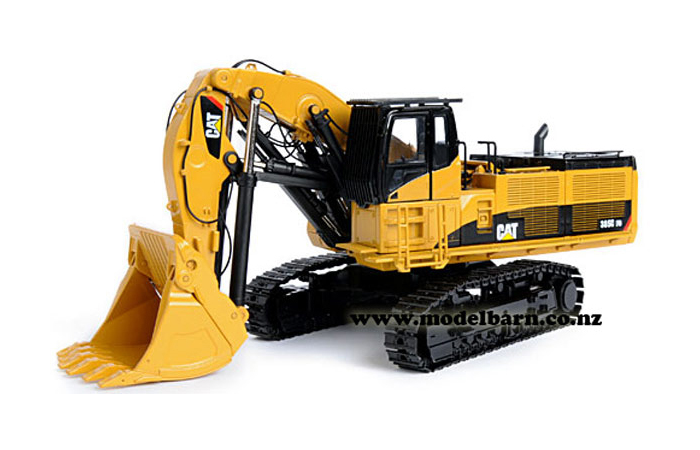

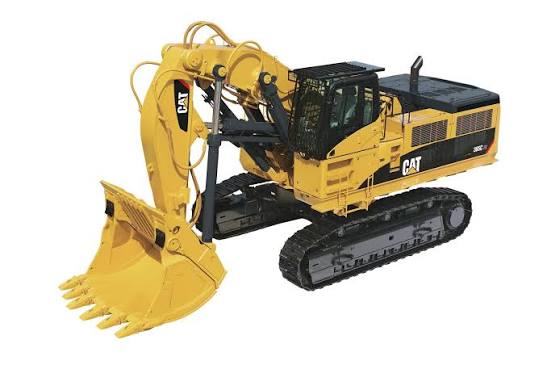

Caterpillar 385C FS Excavator
1 / 5
Image 1 of 5
Image: modelbarn.co.nz

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight199,739 lb
Fuel Capacity327.6 gal
Hydraulic Pump Flow Capacity258.9 gal/min
Hydraulic System Fluid Capacity262.9 gal
Hydraulic System Relief Valve Pressure4,641 psi
Engine Oil Capacity17.2 gal
Cooling System Fluid Capacity26.7 gal
Swing Drive Fluid Capacity5.1 gal
Alternator Supplied Amperage75 A
Swing Speed6 rpm

Engine

Engine specifications
Displacement1,105 in³
Power Measured @1,800 rpm

Dimensions

Dimensions specifications
Ground Clearance33 in
Length of Track on Ground230 in
Tail Swing Radius181 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance65 in
Upper Structure Ground Clearance65 in
Length of Tracks230 in

Undercarriage

Undercarriage specifications
Track Gauge139 in
Number of Track Rollers per Side8
Max Travel Speed2.8 mph
Shoe Size26 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3
Drawbar Pull133,087 lb
Number of Upper Rollers3
Number of Lower Rollers8
Backhoe Shoe Width 126 in
Backhoe Operating Weight - Shoe 1199,739 lb
Number of Track Shoes per Side47
Tail Swing Radius181 in

Bucket

Bucket specifications
Reference Bucket Capacity3.90 yd³
Maximum Bucket Capacity7.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Loading Shovel

Loading Shovel specifications
Max Dig Depth113 in
Max Cutting Height444 in
Max Dump Height293 in
Max Dig Reach408 in
Height to Top of Boom - shovel178 in
Overall Length - shovel561 in
Loading ShovelM3.4JB
