Caterpillar

613B

Scraper

Net Power
150.0 hp
Max Speed - Forward
24.0 mph
All scrapers

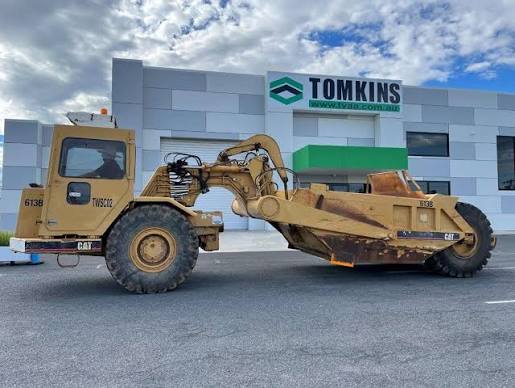

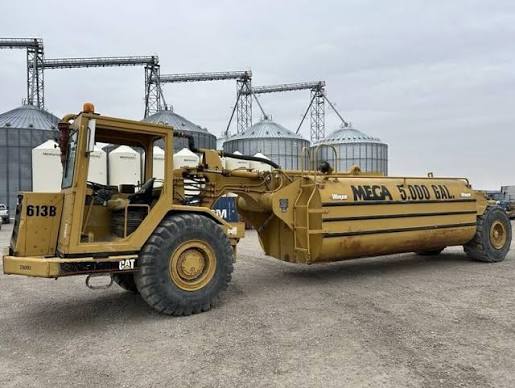

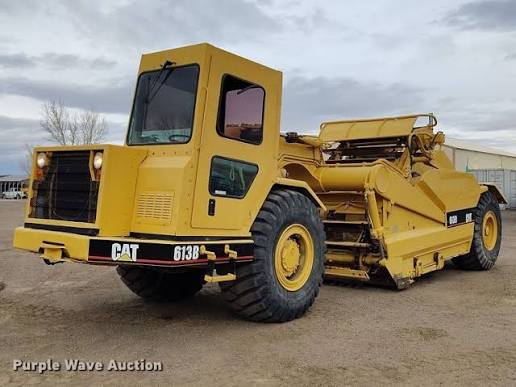

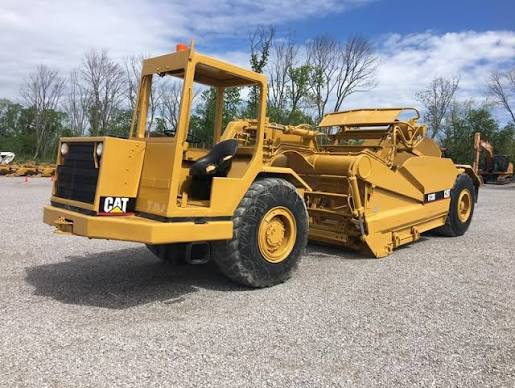

Caterpillar 613B Scraper
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

14 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity65.0 gal
Tire Size18.0x2512 PR

Weights

Weights specifications
Total Operating - empty31,537 lb

Dimensions

Dimensions specifications
Wheelbase251 in
Overall Length385 in
Overall Width97 in
Overall Height113 in

Transmission

Transmission specifications
Max Speed - Forward24.0 mph

Bowl

Bowl specifications
Heaped Capacity11.00 yd³
Width of Cut97 in
Max Depth of Cut7 in

Tractor Engine

Tractor Engine specifications
Net Power150.0 hp
Displacement636 in³
Power Measured @2,200 rpm
