Caterpillar

613C

Scraper

Gross Power
175.0 hp
Max Speed - Forward
24.3 mph
All scrapers

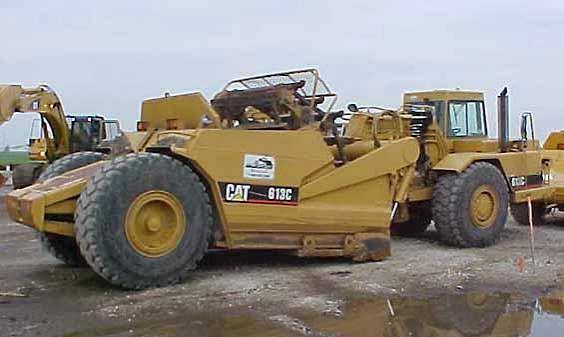

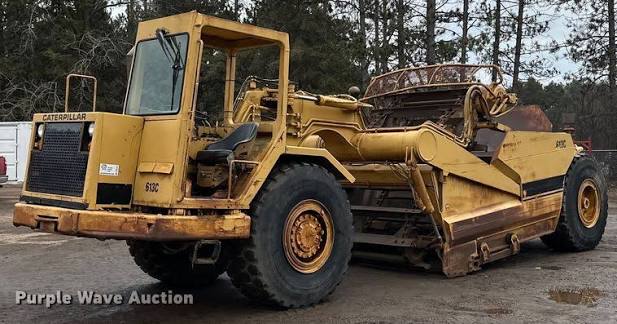

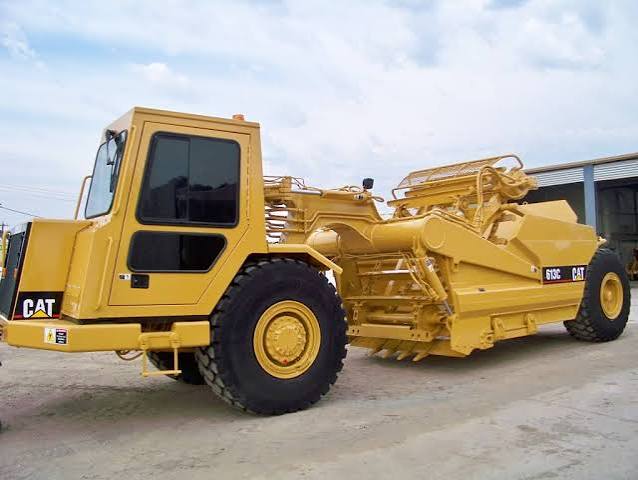

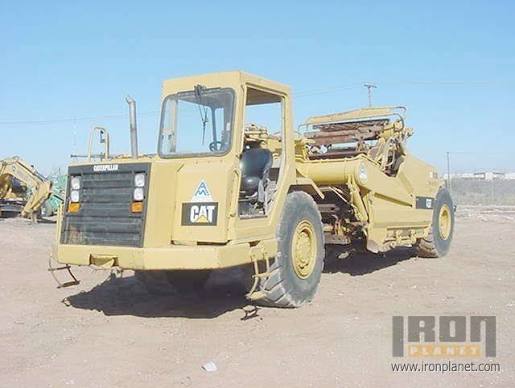

Caterpillar 613C Scraper
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity66.1 gal
Tire Size18.00-25 16PR (E-2)

Weights

Weights specifications
Total Operating - empty32,342 lb
Total Operating - Loaded58,334 lb
Front Axle - empty20,375 lb
Rear Axle - empty11,967 lb
Front Axel - loaded28,583 lb
Rear Axle - loaded29,751 lb

Dimensions

Dimensions specifications
Wheelbase247 in
Overall Length395 in
Overall Width97 in
Overall Height121 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Number of Forward Gears6

Bowl

Bowl specifications
Heaped Capacity11.00 yd³
Width of Cut94 in
Max Depth of Cut6 in
Rated Payload25,993 lb

Tractor Engine

Tractor Engine specifications
Gross Power175.0 hp
Displacement635 in³
MakeCaterpillar

Elevator

Elevator specifications
Number of Flights15
