Caterpillar

615

Scraper

Gross Power
249.5 hp
Max Speed - Forward
29.3 mph
All scrapers

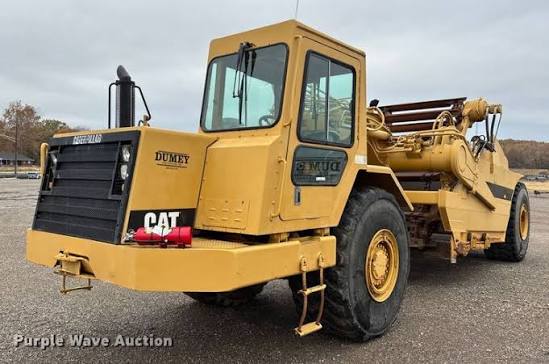

Caterpillar 615 Scraper
1 / 5
Image 1 of 5
Image: warrencat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.5 gal
Tire Size26.5-25 26PR (E-2)

Weights

Weights specifications
Total Operating - empty51,588 lb
Total Operating - Loaded89,993 lb
Front Axle - empty33,532 lb
Rear Axle - empty18,056 lb
Front Axel - loaded47,696 lb
Rear Axle - loaded42,297 lb

Dimensions

Dimensions specifications
Wheelbase276 in
Overall Length446 in
Overall Width120 in
Overall Height142 in

Transmission

Transmission specifications
Max Speed - Forward29.3 mph
Number of Forward Gears6

Bowl

Bowl specifications
Heaped Capacity16.00 yd³
Width of Cut114 in
Max Depth of Cut16 in
Rated Payload38,405 lb

Tractor Engine

Tractor Engine specifications
Gross Power249.5 hp
Displacement641 in³
MakeCaterpillar

Elevator

Elevator specifications
Number of Flights18
