Caterpillar

615C

Scraper

Gross Power
265.0 hp
Max Speed - Forward
29.3 mph
All scrapers

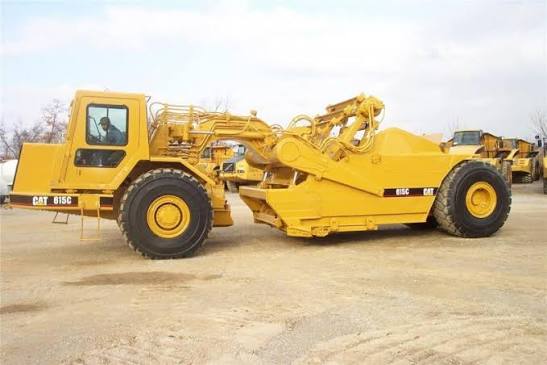

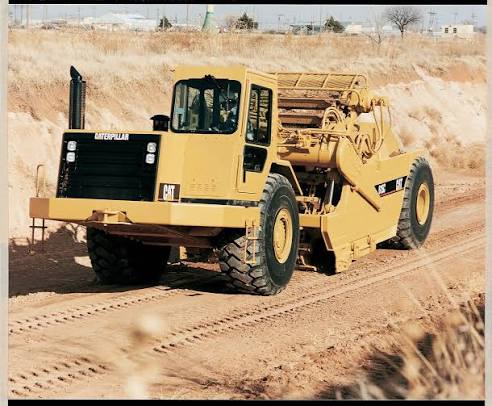

Caterpillar 615C Scraper
1 / 5
Image 1 of 5
Image: warrencat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.5 gal
Tire Size26.5-25 26PR (E-2)

Weights

Weights specifications
Total Operating - empty50,715 lb
Total Operating - Loaded89,120 lb
Front Axle - empty40,065 lb
Rear Axle - empty10,651 lb
Front Axel - loaded47,234 lb
Rear Axle - loaded41,886 lb

Dimensions

Dimensions specifications
Wheelbase276 in
Overall Length457 in
Overall Width120 in
Overall Height142 in

Transmission

Transmission specifications
Max Speed - Forward29.3 mph
Number of Forward Gears6

Bowl

Bowl specifications
Heaped Capacity16.00 yd³
Width of Cut114 in
Max Depth of Cut16 in
Rated Payload38,405 lb

Tractor Engine

Tractor Engine specifications
Gross Power265.0 hp
Displacement641 in³
MakeCaterpillar

Elevator

Elevator specifications
Number of Flights18
