Caterpillar

621E

Scraper

Gross Power
330.0 hp
Max Speed - Forward
31.7 mph
All scrapers

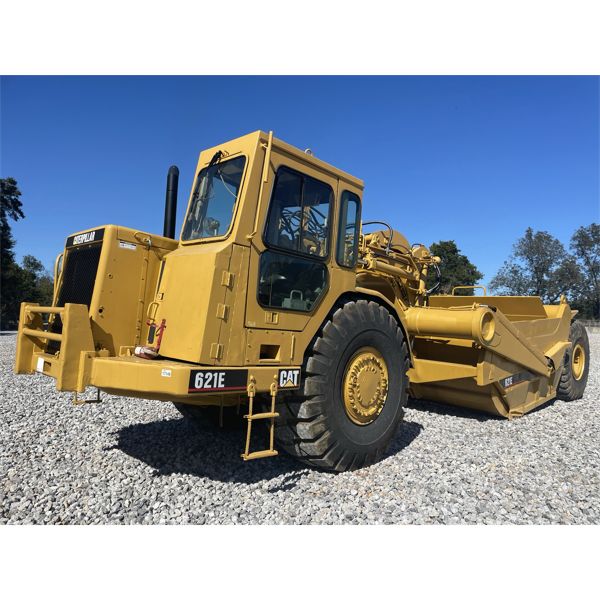

Caterpillar 621E Scraper
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity144.0 gal
Tire Size33.25-29 26 PR (E-3)

Weights

Weights specifications
Total Operating - empty67,188 lb
Total Operating - Loaded115,189 lb
Front Axle - empty45,686 lb
Rear Axle - empty21,502 lb
Front Axel - loaded61,051 lb
Rear Axle - loaded54,139 lb

Dimensions

Dimensions specifications
Height - Top of Cab146 in
Wheelbase305 in
Overall Length510 in
Overall Width137 in

Transmission

Transmission specifications
Max Speed - Forward31.7 mph
Number of Forward Gears8

Bowl

Bowl specifications
Heaped Capacity20.10 yd³
Width of Cut120 in
Max Depth of Cut13 in
Rated Payload47,995 lb
Struck Capacity14.00 yd³

Tractor Engine

Tractor Engine specifications
Gross Power330.0 hp
Displacement891 in³
MakeCaterpillar
