Caterpillar

623B

Scraper

Net Power
330.0 hp
Gross Power
329.9 hp
All scrapers

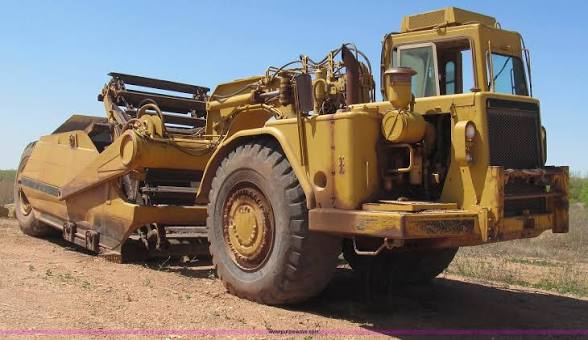

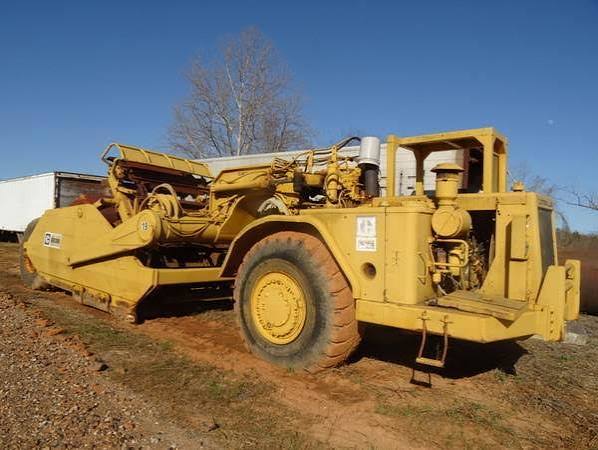

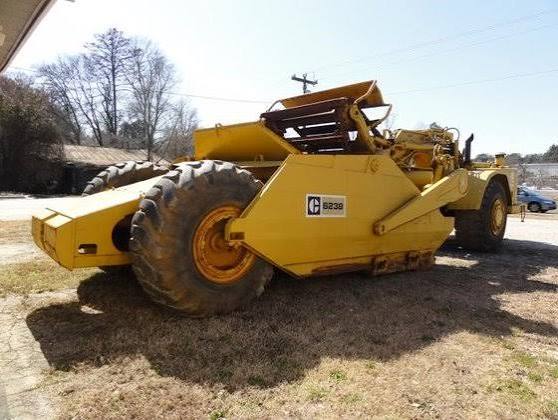

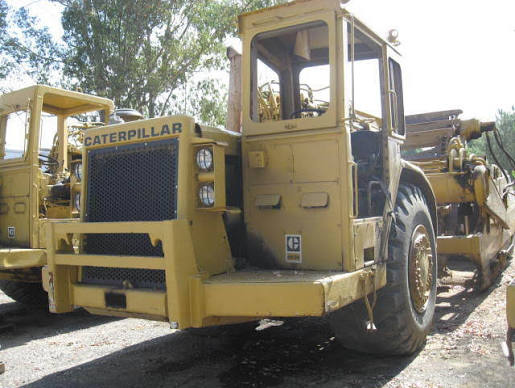

Caterpillar 623B Scraper
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity135.0 gal

Weights

Weights specifications
Total Operating - Loaded122,368 lb
Front Axle - empty49,209 lb
Rear Axle - empty23,157 lb
Front Axel - loaded66,079 lb
Rear Axle - loaded56,289 lb

Dimensions

Dimensions specifications
Wheelbase315 in
Overall Length493 in
Overall Width141 in
Overall Height150 in

Transmission

Transmission specifications
Number of Forward Gears8

Bowl

Bowl specifications
Heaped Capacity22.00 yd³
Width of Cut125 in
Max Depth of Cut13 in
Rated Payload50,001 lb

Tractor Engine

Tractor Engine specifications
Net Power330.0 hp
Gross Power329.9 hp
Displacement891 in³
MakeCaterpillar
Power Measured @1,900 rpm

Elevator

Elevator specifications
Number of Flights15
