CaterpillarCaterpillar

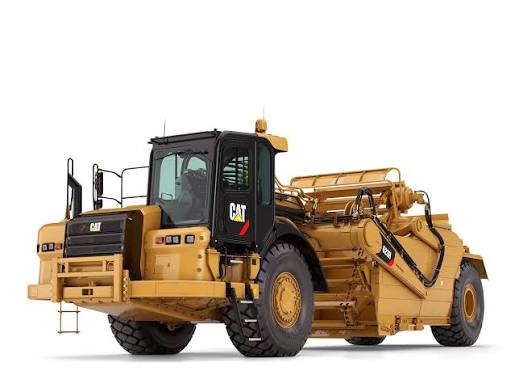

633E II
Scraper
91 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Fuel Capacity | 201.6 gal |
|---|---|
| Cooling System Fluid Capacity | 17.0 gal |
| Hydraulic System Fluid Capacity | 22.0 gal |
Engine
| Flywheel Power - Tractor/Scraper | 304 kW (407) |
|---|
Weights
| Total Operating - Loaded | 142,701 lb |
|---|
Hydraulic System
| Bowl Cylinder Bore | 6 in |
|---|---|
| Bowl Cylinder Stroke | 33 in |
| Ejector Cylinder Stroke | 48 in |
| Ejector Cylinder Bore | 4 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Number of Reverse Gears | 1 |
| 1 Forward | 3.1 mph |
| 2 Forward | 5.5 mph |
| 3 Forward | 7.5 mph |
| 4 Forward | 10.1 mph |
| 5 Forward | 13.6 mph |
| 6 Forward | 18.4 mph |
| Reverse | 5.7 mph |
| 7 Forward | 24.8 mph |
| 8 Forward | 33.5 mph |
| Top Speed - Loaded | 33.5 mph |
Steering System
| Steering Angle - Left | 82 ° |
|---|---|
| Steering Angle - Right | 85 ° |
Bowl
| Heaped Capacity | 22.99 yd³ |
|---|---|
| Width of Cut | 124 in |
| Rated Payload | 55,200 lb |
| Struck Capacity | 18.80 yd³ |
Tractor Engine
| Displacement | 763 in³ |
|---|---|
| Make | Caterpillar |
Scraper Bowl
| Rated Load | 55,200 lb |
|---|---|
| Scraper Capacity - Heaped | 22.99 yd³ |
Service Refill Capacities - Tractor
| Cooling System | 17.0 gal |
|---|---|
| Differential | 45.8 gal |
| Final Drive - Each | 5.0 gal |
| Hydraulic Reservoir | 22.0 gal |
| Transmission | 18.5 gal |
